KoreaMonoRail Pro

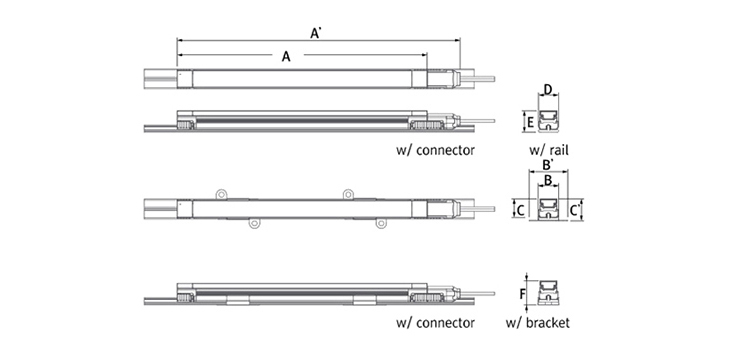

| Model Name | Power Input (V) | Lamp Power (W) | A(mm) | A'(mm) | B(mm) | B'(mm) | C(mm) | C'(mm) | D(mm) | E(mm) | F(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MNP1 40K-24V-C90 | DC 24 | 1.3 | 95 | 121 | 15.3 | 30.6 | 14.8 | 17.4 | 15.6 | 17 | 17 |
| MNP4 40K-24V-C90 | DC 24 | 4 | 286 | 312 | 15.3 | 30.6 | 14.8 | 17.4 | 15.6 | 17 | 17 |
| MNP8 40K-24V-C90 | DC 24 | 8 | 572 | 598 | 15.3 | 30.6 | 14.8 | 17.4 | 15.6 | 17 | 17 |

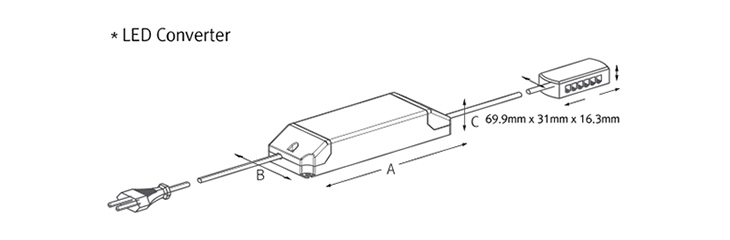

| Model Name | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| FLC15-24V/T | 121 | 45 | 16 |
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V/T | 180 | 60 | 32 |

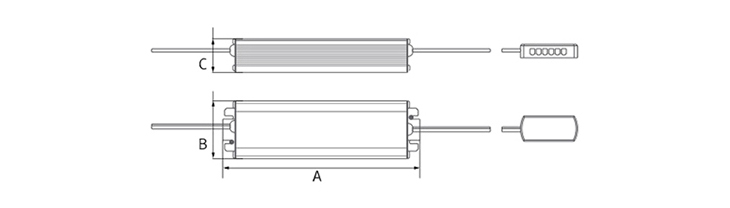

| Model Name | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| FLC200-24V/T | 228 | 68 | 39 |
