TC-S1

• 1 Channel, 2 output terminal blocks
• Dimension : W70 X H120 X D38 (mm)
• Input power : AC 90 - 240V
• Frequency : 50/60Hz
• Output protocol : PWM 400Hz
• Max. Conneciton : 10pcs of DimSlim/DimSlimLine per output terminal block and up to 400W regardless of output terminal block
• Control range : 14 levels

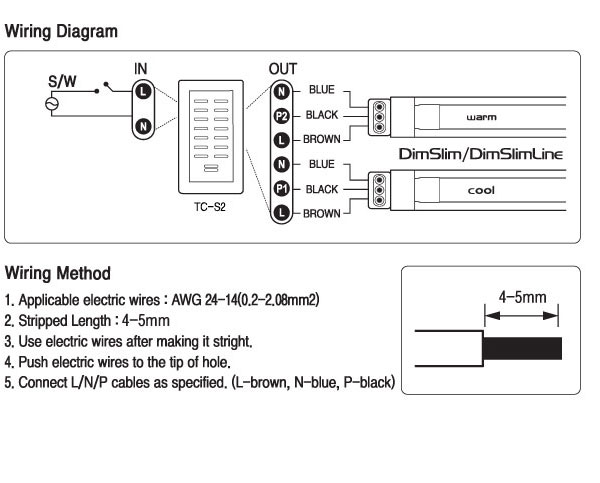

TC-S2

• 2 Channel
• Dimension : W70 X H120 X D38 (mm)
• Input power : AC 90 - 240V
• Frequency : 50/60Hz
• Output protocol : PWM 400Hz
• Max. Connection : 10pcs of DimSlim/DimSlimLine per channel and up to 400W regardless of channel
• Control range : 7 levels of each intensity & Kelvin temp

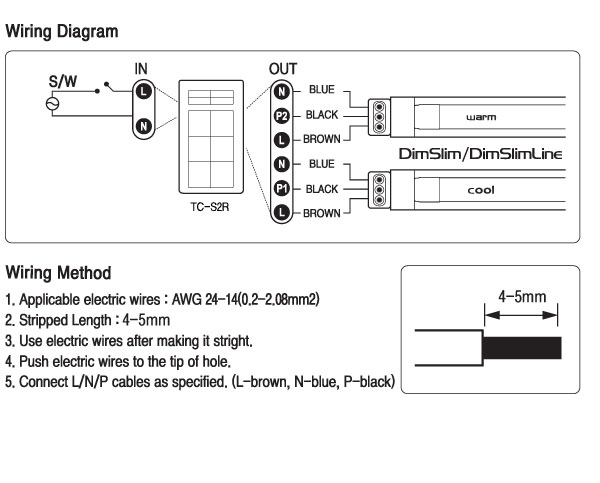

TC-S2R

• 2 Channel (Warm, Cool control)
• Dimension : W70 X H120 X D14 / Burial depth 30 (mm)
• Input power : AC 90 - 240V
• Frequency : 50/60Hz
• Output protocol : PWM
• Max. Conneciton : 10pcs of DimSlim/DimSlimLine per output terminal block and up to 400W regardless of output terminal block
• Control range : 16 levels of intensity and 6scene memorized

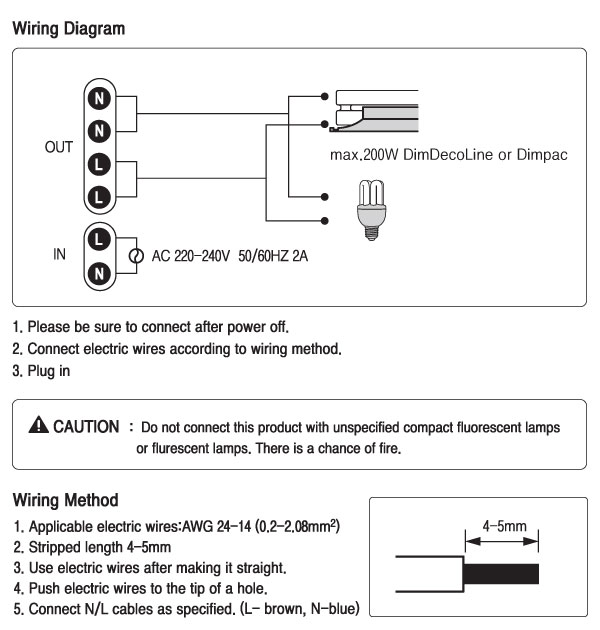

TC-S2B

• 2 Channel (Warm, Cool control)
• Dimension : W70 X H120 X D14 / Burial depth 30 (mm)
• Input power : AC 90 - 240V
• Frequency : 50/60Hz
• Output protocol : Phase
• Max. Conneciton : 11pcs of DimDecoLine/DimPac (up to 200W)
• Control range : 16 levels of intensity and 6scenes

SR-02

• Remote Controller
• for TC-S1, TC-S2, TC-S2R, TC-S2B, FSA-P2D (black model)

• Power : AAA 1.5V X 2
• Dimension : W38 X H110 X D20 (mm)

Manual

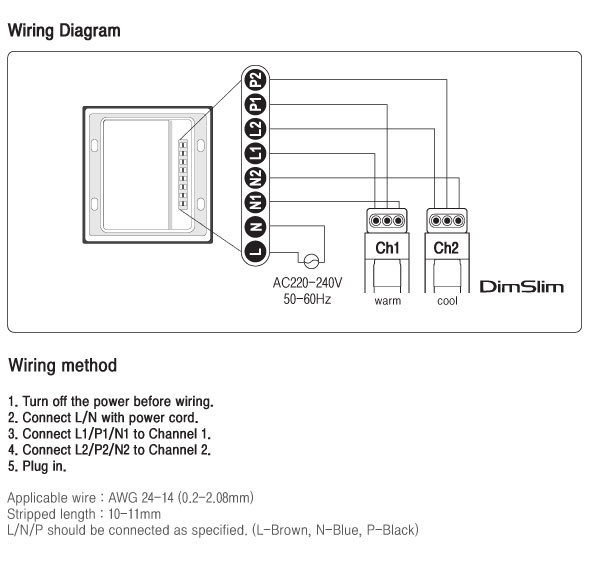

FSA-P2D

2Channel 4Scene Sun In House system
SIH system applied (Scenes saved or recalled by user)
Bedtime (Timer automatically turns light off at intervals)

• 2 channel

• Dimension : W122 X H122 X D46 (mm)

• Input power : AC 220-240V,110-130V
• Frequency : 50/60Hz
• Output protocol : PWM
• Max. Connection : 10pcs of DimSlim/DimSlimLine per channel and up to 350W per channel

• Control range : Control by channel 4scene memorized

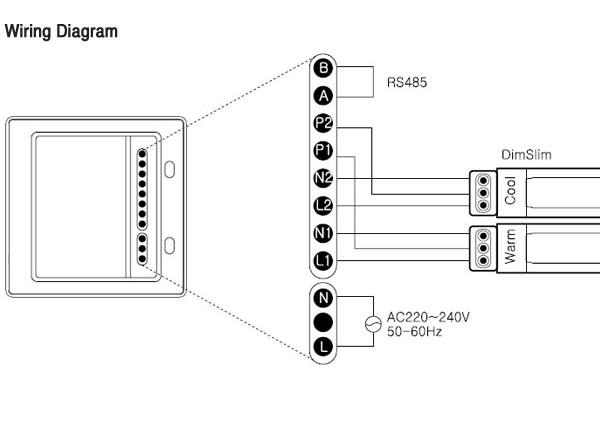

FSB-P2R

• 2 channel

• Dimension : W122 X H122 X D46 (mm)

• Input power : AC 220-240V
• Frequency : 50/60Hz
• Output protocol : PWM
• Max. Connection : 10pcs of DimSlim/DimSlimLine per channel and up to 350W per channel
• Control by channel and 4 scenes memorized

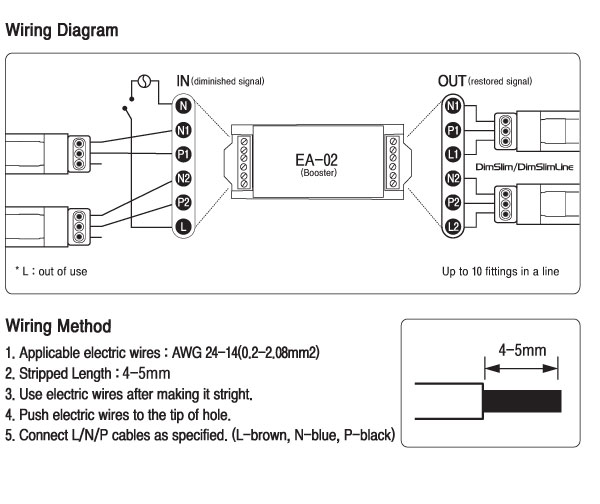

EA-02 (Booster)

TC-S1, TC-S2, TC-S2R, FSA-P2D, DA02Z
and DA02V10SE are able to connect to a maximum of 10pieces of DimSlim/DimSlimLine per channel, and remarkably extends the connecting capability. Link the Booster at the 10th DimSlim/DimSlimLine from the controllers, and 20 more piece of fixture can be connected.

• 2 Channel

• Dimension : W115 X H23 X D45 (mm)

• Input power : AC 90 - 240V
• Frequency : 50/60Hz
• Output protocol : PWM 400Hz
• Max. Connection : 10pcs of DimSlim/DimSlimLine per channel and up to 800W regardless of channel
