Other System Interface - DC Type

other system interface

other system interface

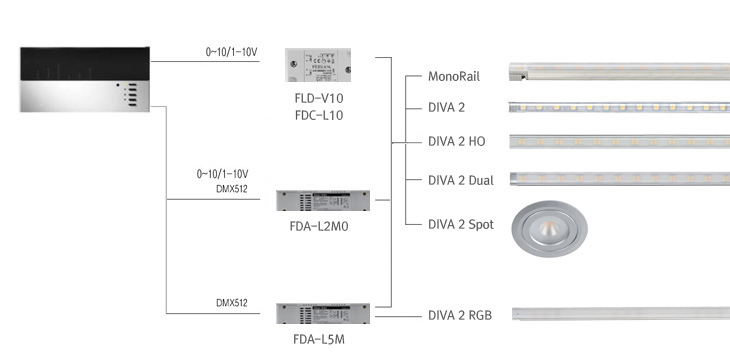

FLD-V10

FLD-V10 (0~10V/1~10V Dimming interface)

  • Input Voltage : DC 12V/24V
  • Output Voltage : DC 12V LED Max.24W, DC 24V LED Max.48W
  • Input Signal : DC 0~10V, DC 1-10V
  • Channel : 1CH
  • LAMP : DC 12V/24V LED
  • Dimension : W78 X H40 X D16
Manual >
FDC-L10

FDC-L10 (0~10V/1~10V Dimming interface)

  • Input Voltage : DC 12V/24V
  • Output Voltage : DC 12V LED Max.50W, DC 24V LED Max.100W
  • Input Signal : DC 0~10V, DC 1-10V
  • Channel : 1CH
  • LAMP : DC 12V/24V LED
  • Dimension : W78 X H40 X D16
Manual >
FDA-L2M0

FDA-L2M0 (0-10/1-10 Signal, DMX512 Dimming interface)

  • Input Voltage : DC 12V/24V
  • Output Voltage : DC 12V LED Max.100W (50W/CH) / DC 24V LED Max.200W (100W/CH)
  • Input Signal : DC 0~10V, DC 1-10V, DMX512
  • Channel : 2CH
  • LAMP : DC 12V/24V LED
  • Dimension : W200 X H50 X D35
Manual >
FDA-L5M

FDA-L5M (DMX512 Dimming interface)

  • Input Voltage : DC 12V/24V
  • Output Voltage : DC 12V LED Max.100W (25W/CH) / DC 24V LED Max.200W (50W/CH)
  • Input Signal : DMX512
  • Channel : 5CH
  • LAMP : DC 12V/24V LED
  • Dimension : W200 X H50 X D35
Manual >

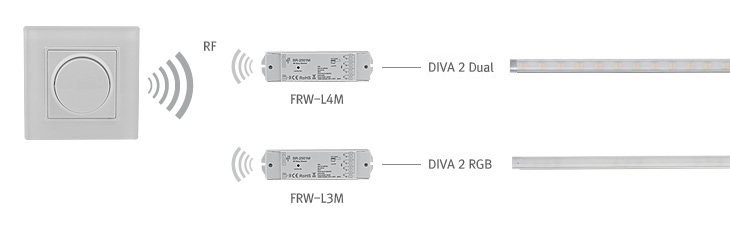

FRW-L4M

FRW-L4M (RF Dimming interface)

  • Input Voltage : DC 12V~36V
  • Output Voltage : DC 12V~36V (60~180W/CH)
  • Input Signal : RF
  • Channel : 4CH
  • LAMP : FLX Stix DDV
  • Dimension : W180 X H45 X D20
Manual >
FRW-L3M

FRW-L3M (RF Color Changing interface)

  • Input Voltage : DC 12V~36V
  • Output Voltage : DC 12V~36V (60~180W/CH)
  • Input Signal : RF
  • Channel : 3CH
  • LAMP : FLX Stix RDV
  • Dimension : W180 X H45 X D20
Manual >
