KoreaFLX Stix NDV

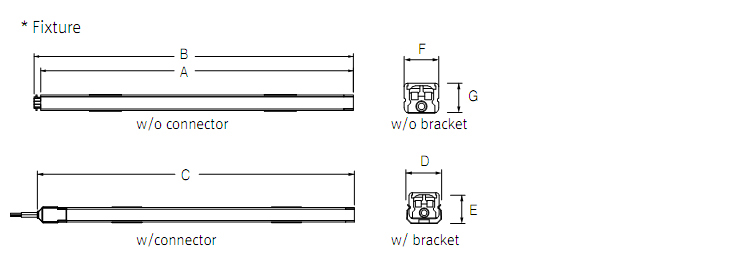

| Model Name | Power Input | Lamp Power(W) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
|---|---|---|---|---|---|---|---|---|---|
| NDV1 40K-24V | DC 24 | 1.2 | 95 | 100 | 117 | 12 | 11 | 10.6 | 9 |
| NDV3 40K-24V | DC 24 | 2.4 | 188 | 192 | 210 | 12 | 11 | 10.6 | 9 |
| NDV4 40K-24V | DC 24 | 3.5 | 280 | 285 | 302 | 12 | 11 | 10.6 | 9 |
| NDV7 40K-24V | DC 24 | 7 | 560 | 565 | 582 | 12 | 11 | 10.6 | 9 |
| NDV11 40K-24V | DC 24 | 10.5 | 840 | 845 | 862 | 12 | 11 | 10.6 | 9 |
| NDV15 40K-24V | DC 24 | 14 | 1118 | 1123 | 1140 | 12 | 11 | 10.6 | 9 |

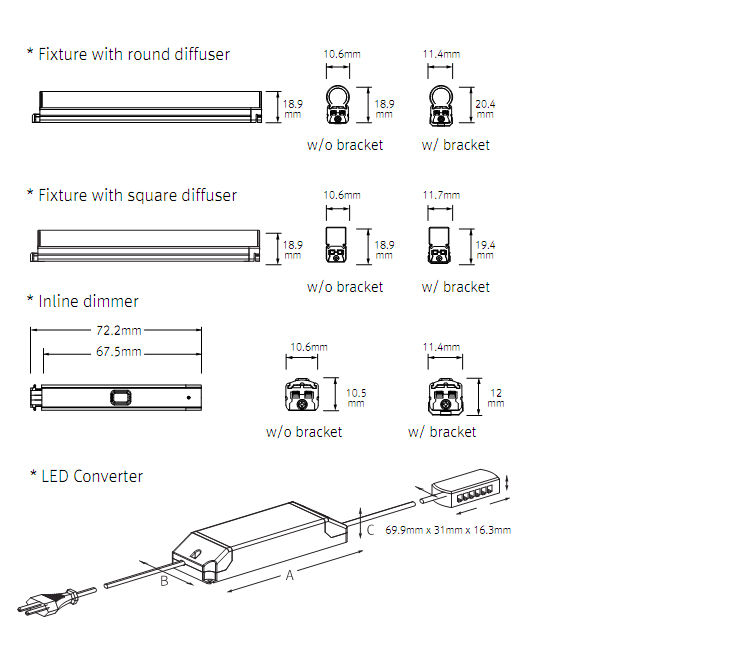

| Model Name | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| FLC15-24V/T | 121 | 45 | 16 |
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V/T | 180 | 60 | 32 |
| FLC200-24V/T | 250 | 65 | 38 |
