FLX Stix - HDV Series

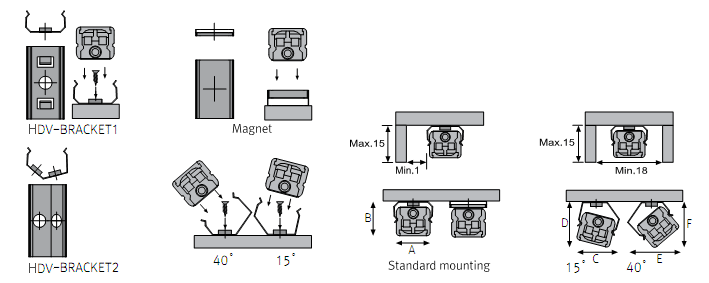

Installation
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | |
|---|---|---|---|---|---|---|
| Flat type | 16.8 | 14.2 | 17.5 | 16.5 | 19.1 | 17.5 |
| Round type | 16.8 | 22.1 | 18.8 | 24.4 | 23.4 | 22.9 |
| Square type | 16.8 | 22.6 | 21.3 | 26.2 | 25.7 | 25.7 |
| A(in) | B(in) | C(in) | D(in) | E(in) | F(in) | |
|---|---|---|---|---|---|---|
| Flat type | 21/32 | 9/16 | 11/16 | 21/32 | 21/32 | 11/16 |
| Round type | 21/32 | 7/8 | 47/64 | 61/64 | 59/64 | 29/32 |
| Square type | 21/32 | 57/64 | 27/32 | 1 1/32 | 1 1/64 | 1 1/64 |

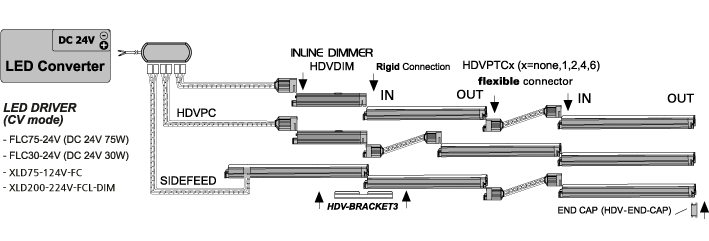

Connection
