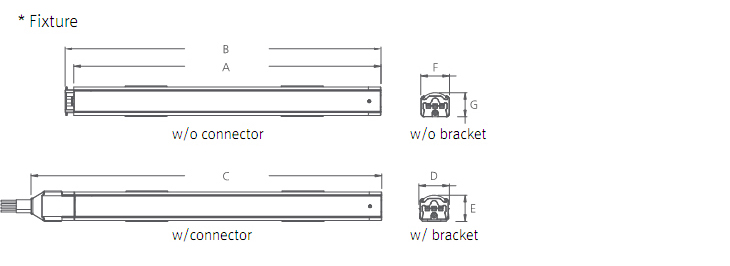

    Fixture dimension
    Fixture dimension
    Model Name Power Input Lamp
    Power(W)    		 A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm)
    HDV3 40K-24V DC 24 2.9 140 145 162 16 14 15 12.5
    HDV6 40K-24V DC 24 5.8 280 285 302 16 14 15 12.5
    HDV12 40K-24V DC 24 11.6 560 565 582 16 14 15 12.5
    HDV18 40K-24V DC 24 17.4 840 845 862 16 14 15 12.5
    HDV24 40K-24V DC 24 23.2 1118 1123 1140 16 14 15 12.5

    Fixture dimension
    Model Name Power Input Lamp
    Power(W)    		 A(in) B(in) C(in) D(in) E(in) F(in) G(in)
    HDV3 40K-24V DC 24 2.9 5 33/64 5 45/64 6 3/8 5/8 35/64 19/32 31/64
    HDV6 40K-24V DC 24 5.8 11 1/32 11 7/32 11 57/64 5/8 35/64 19/32 31/64
    HDV12 40K-24V DC 24 11.6 22 3/64 22 1/4 22 29/32 5/8 35/64 19/32 31/64
    HDV18 40K-24V DC 24 17.4 33 5/64 33 17/64 33 15/16 5/8 35/64 19/32 31/64
    HDV24 40K-24V DC 24 23.2 44 1/64 44 7/6 44 7/8 5/8 35/64 19/32 31/64

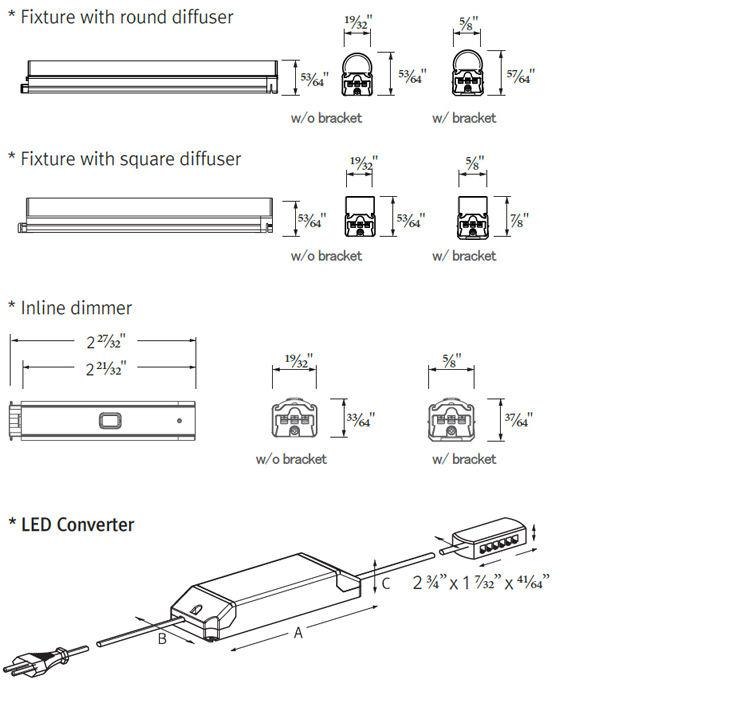

    Diffuser,Dimmer,Converter dimension
    Diffuser,Dimmer,Converter dimension
    Model Name A (inch) B (inch) C (inch)
    FLC30-24V/XL 5 29/32 1 39/64 1 7/32
    FLC75-24V/XL 7 3/32 2 23/64 1 17/64
