Other System Interface
![DA02V10SE](img/da02v10se.jpg)
DA02V10SE (0-10V/1-10V to PWM translator) ![](img/ce.jpg)
- 2 Channels
- Current Limit : Max. 2A/Ch
- Input Signal : DC 0-10V/1-10V
- Rated Input : AC 220 - 240V, 50/60Hz
- Out Power : 220-240V, PWM output 2Ch
- Max 10 pcs of DimSlim/DimSlimline/Led dimming products per channel and up to 400W per channel
- Dimension : W139.8 X H58.4 X D33 (mm)
![FDA-P1H](img/fdap1h.jpg)
FDA-P1H (Phase to PWM translator) ![](img/ce.jpg)
Change incandescent lamp to Feelux dimmable T5 lamp!
You don't need to change your pahse dimmers.
You can use the existing installed ones by using FDA-P1H.
- 1 Channel, 2 output terminal blocks
- Rated Input : AC 220-240V, 50/60Hz
- Input Signal : Phase
- Output Load : Max 10pcs of DimSlim/DimSlimLine/Led dimming products per channel and up to 400W per channel
- Dimension : W220 X H50 X D35 (mm)
![DTOPWM01](img/dtopwm.jpg)

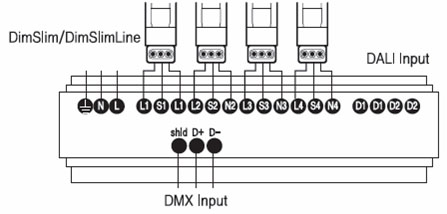

DTOPWM01 (DALI/DSI/DMX to PWM Translator) ![](img/ce.jpg)
- DTOPWM01 will interface DimSlim PWM with any other DALI/DSL/DMX
- manufactured control proprietary system.
- A single DTOPWM01 can handle a total of 3,500 lamp watts.
- 4 independent PWM output signals for DimSlim
- Maximum connecting load for individua output is 10amps/1750 lamp watts per circuit, or 50 fixtures per channel.
- Translates standard DALI 4 device protocol with DALI
- Translates standard DMX 512 protocol
- Translates DSI protocol
- Volt : AC 198 - 264V
- Frequency : 50/60Hz
- Current : 20amp-4m2 terminals
- Mechanical fixing : DIN rail clip lock
- Dimenson : W209 X H86 X D66 (mm)
![DTOPWM02](img/dtopwm2.jpg)
DTOPWM02 (DALI/DSI/DMX to PWM Translator) ![](img/ce.jpg)
- DTOPWM02 will interface DimSlim PWM with any other DALI/DSL/DMX
- manufactured control proprietary system.
- A single DTOPWM02 can handle a total of 3,500 lamp watts.
- 4 independent PWM output signals for DimSlim
- Maximum connecting load for individua output is 10amps/1750 lamp watts per circuit, or 50 fixtures per channel.
- Translates standard DALI 4 device protocol with DALI
- Translates standard DMX 512 protocol
- Translates DSI protocol
- Volt : AC 198 - 264V
- Frequency : 50/60Hz
- Current : 20amp-4m2 terminals
- Mechanical fixing : DIN rail clip lock
- Dimenson : W209 X H86 X D66 (mm)
![DA02DALI](img/da02dali.jpg)
DA02DALI (DALI to PWM translator) ![](img/ce.jpg)
- 2channel
- Dimension : W139.8 X H58.4 X D33 (mm)
- Input Signal : DALI
- Rated Input : AC 100-240V, 50/60Hz
- Output Signal : PWM
- Output Load : Max 10pcs of DimSlim/DimSlimLine/Led dimming products per channel and up to 300W per channel
![FDA-P2M](img/fdap2m.jpg)
FDA-P2M (DMX512 to PWM translator) ![](img/ce.jpg)
- 2channel
- Dimension : W220 X H50 X D35 (mm)
- Input Signal : DMX 512
- Rated Input : AC 220-240V, 50/60Hz, 3A
- Output Signal : PWM
- Output Load : Max 10pcs of DimSlim/DimSlimLine/Led dimming products per channel and up to 300W per channel
