KoreaFLX Stix HDPro

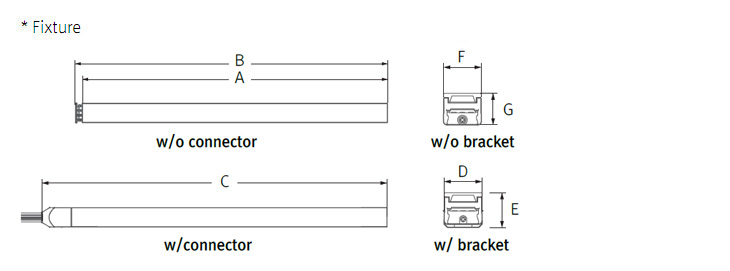

| Model Name | Power Input | Lamp Power(W) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
|---|---|---|---|---|---|---|---|---|---|
| HDP3 40K-24V | DC 24 | 3 | 139.9 | 145 | 162.8 | 16 | 14 | 15 | 12.7 |
| HDP6 40K-24V | DC 24 | 6 | 280 | 285.1 | 302.9 | 16 | 14 | 15 | 12.7 |
| HDP12 40K-24V | DC 24 | 12 | 559.5 | 564.6 | 582.4 | 16 | 14 | 15 | 12.7 |
| HDP18 40K-24V | DC 24 | 18 | 838.5 | 843.6 | 861.4 | 16 | 14 | 15 | 12.7 |
| HDP24 40K-24V | DC 24 | 24 | 1111.6 | 1122.7 | 1140.5 | 16 | 14 | 15 | 12.7 |

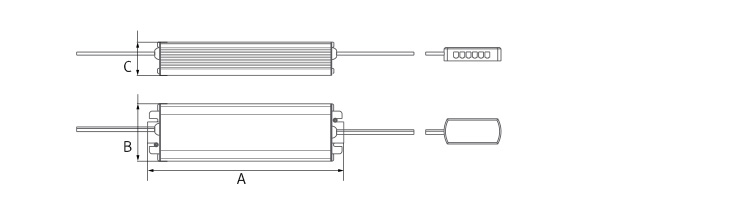

| Model Name | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| FLC15-24V/T | 121 | 45 | 16 |
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V/T | 180 | 60 | 32 |
| FLC200-24V/T | 250 | 65 | 38 |
| Model Name | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| FLC200-24V/T | 228 | 68 | 39 |
