KoreaFLX Stix NDP
| Model Name | Power Input | Lamp Power(W) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
|---|---|---|---|---|---|---|---|---|---|
| NDP1 40K-24V | DC 24 | 1 | 95.7 | 100.8 | 117.9 | 12 | 11 | 10.6 | 10 |
| NDP3 40K-24V | DC 24 | 3 | 189.2 | 194.3 | 211.4 | 12 | 11 | 10.6 | 10 |
| NDP4 40K-24V | DC 24 | 4 | 280.2 | 285.3 | 302.4 | 12 | 11 | 10.6 | 10 |
| NDP7 40K-24V | DC 24 | 7 | 559.7 | 564.8 | 581.9 | 12 | 11 | 10.6 | 10 |
| NDP11 40K-24V | DC 24 | 11 | 838.7 | 843.8 | 860.9 | 12 | 11 | 10.6 | 10 |
| NDP15 40K-24V | DC 24 | 14 | 1117.8 | 1122.9 | 1140 | 12 | 11 | 10.6 | 10 |

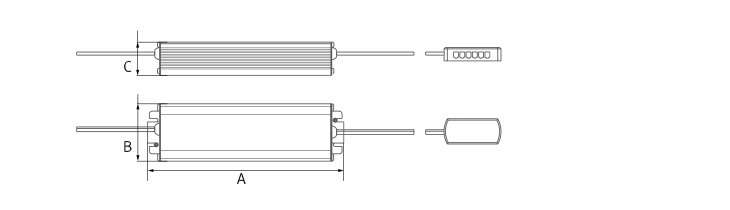

| Model Name | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| FLC15-24V/T | 121 | 45 | 16 |
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V/T | 180 | 60 | 32 |
| FLC200-24V/T | 250 | 65 | 38 |

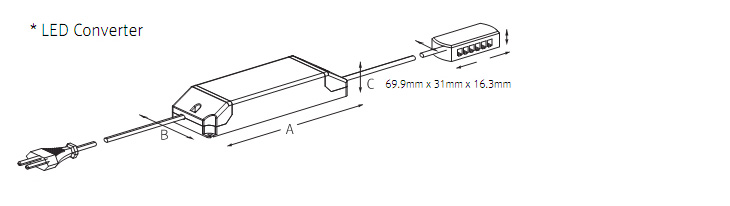

| Model Name | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| FLC200-24V/T | 228 | 68 | 39 |
