MonoRail

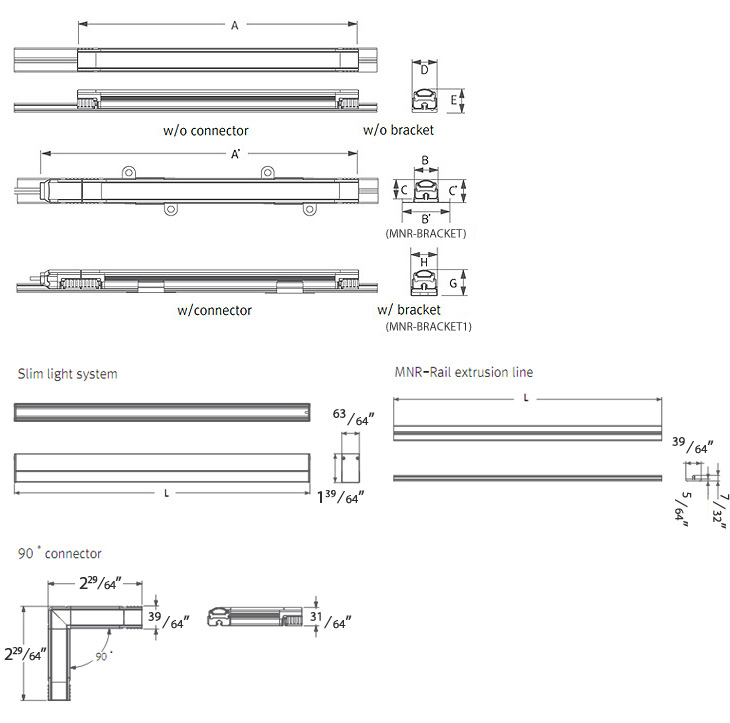

| Model Name | Power Input (V) |
Lamp Power (W) |
A (in) |
A' (in) |
B (in) |
B' (in) |
C (in) |
C' (in) |
D (in) |
E (in) |
G (in) |
H (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MNR1 40K-24V | DC 24 | 1.3 | 3 47/64 | 4 49/64 | 39/64 | 1 13/64 | 31/64 | 19/32 | 39/64 | 37/64 | 43/64 | 21/32 |
| MNR4 40K-24V | DC 24 | 4 | 11 17/64 | 12 9/32 | 39/64 | 1 13/64 | 31/64 | 19/32 | 39/64 | 37/64 | 43/64 | 21/32 |
| MNR8 40K-24V | DC 24 | 8 | 22 33/64 | 23 35/64 | 39/64 | 1 13/64 | 31/64 | 19/32 | 39/64 | 37/64 | 43/64 | 21/32 |
| Model Name | Power Input (V) |
Lamp Power (W) |
A (mm) |
A' (mm) |
B (mm) |
B' (mm) |
C (mm) |
C' (mm) |
D (mm) |
E (mm) |
G (mm) |
H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MNR1 40K-24V | DC 24 | 1.3 | 95 | 121 | 15.3 | 30.6 | 12.3 | 14.9 | 15.6 | 14.6 | 17 | 16.6 |
| MNR4 40K-24V | DC 24 | 4 | 286 | 312 | 15.3 | 30.6 | 12.3 | 14.9 | 15.6 | 14.6 | 17 | 16.6 |
| MNR8 40K-24V | DC 24 | 8 | 572 | 598 | 15.3 | 30.6 | 12.3 | 14.9 | 15.6 | 14.6 | 17 | 16.6 |
