FLX Stix - NDV Series

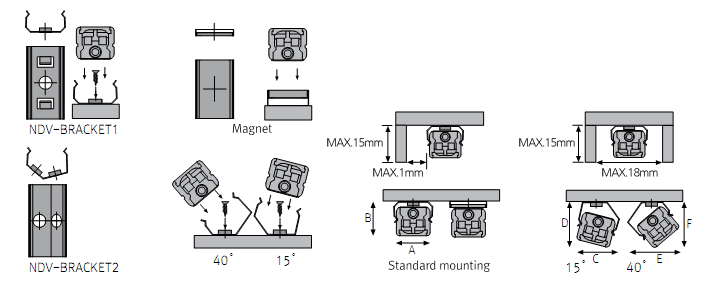

Installation
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | |
|---|---|---|---|---|---|---|
| Flat type | 11.9 | 11.2 | 13.5 | 13.5 | 14.5 | 13 |
| Round type | 11.9 | 19.8 | 15.7 | 15.7 | 18.8 | 20.3 |
| Square type | 11.9 | 19.6 | 15.5 | 15.8 | 18.8 | 20.3 |
| A(in) | B(in) | C(in) | D(in) | E(in) | F(in) | |
|---|---|---|---|---|---|---|
| Flat type | 15/32 | 7/16 | 17/32 | 17/32 | 37/64 | 33/64 |
| Round type | 15/32 | 25/32 | 5/8 | 5/8 | 47/64 | 51/64 |
| Square type | 15/32 | 49/64 | 39/64 | 5/8 | 47/64 | 51/64 |

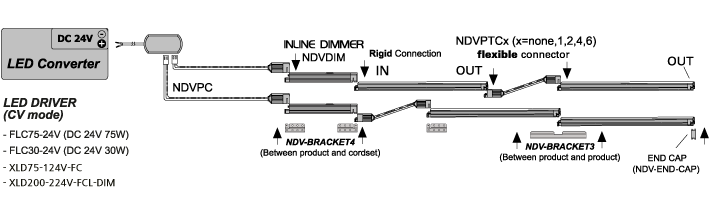

Connection

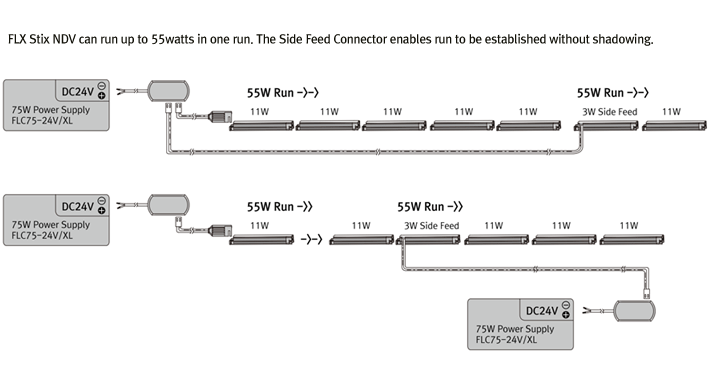

Side feed wiring diagram
