RussiaFLX Stix NDPro

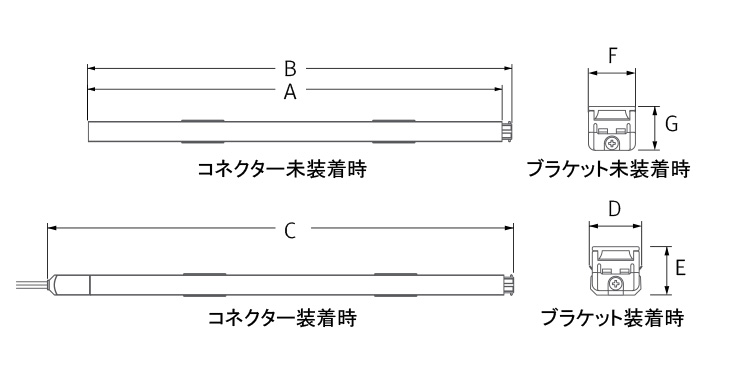

本体寸法
| Model Name | 入力電圧(V) | 消費電力 (W) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
|---|---|---|---|---|---|---|---|---|---|
| NDP1- 40K-24V | DC 24 | 1 | 94.9 | 100 | 122.2 | 12 | 11 | 10.6 | 10 |
| NDP3- 40K-24V | DC 24 | 3 | 188.4 | 193.5 | 215.7 | 12 | 11 | 10.6 | 10 |
| NDP4- 40K-24V | DC 24 | 4 | 280.4 | 285.5 | 307.7 | 12 | 11 | 10.6 | 10 |
| NDP7- 40K-24V | DC 24 | 7 | 559.9 | 565 | 587.2 | 12 | 11 | 10.6 | 10 |
| NDP11- 40K-24V | DC 24 | 11 | 838.9 | 844 | 866.2 | 12 | 11 | 10.6 | 10 |
| NDP15- 40K-24V | DC 24 | 14 | 1118 | 1123.1 | 1145.3 | 12 | 11 | 10.6 | 10 |

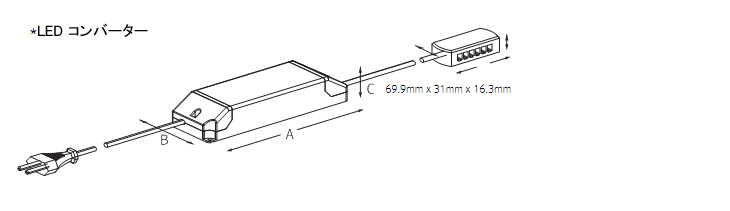

| Model Name | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| FLC30-24V/J | 150 | 41 | 31 |
| FLC75-24V/J | 180 | 60 | 32 |
| FLC200-24V/J | 250 | 65 | 38 |
