RussiaFLX Stix RDV

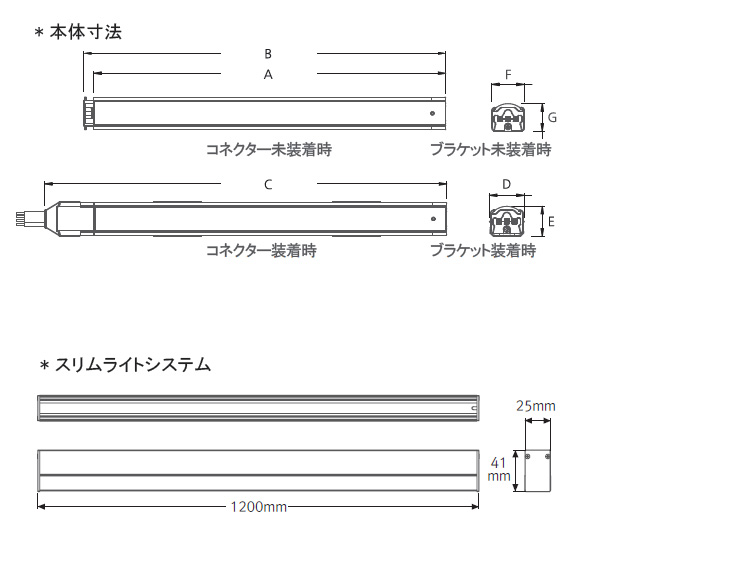

| Model Name | Power Input |
Lamp Power(W) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
|---|---|---|---|---|---|---|---|---|---|
| RDV6 RGB-24V | DC 24 | 6.2 | 280 | 285 | 302 | 16 | 14 | 15 | 12.5 |
| RDV12 RGB-24V | DC 24 | 12.4 | 560 | 565 | 582 | 16 | 14 | 15 | 12.5 |
| RDV18 RGB-24V | DC 24 | 18.6 | 840 | 845 | 862 | 16 | 14 | 15 | 12.5 |

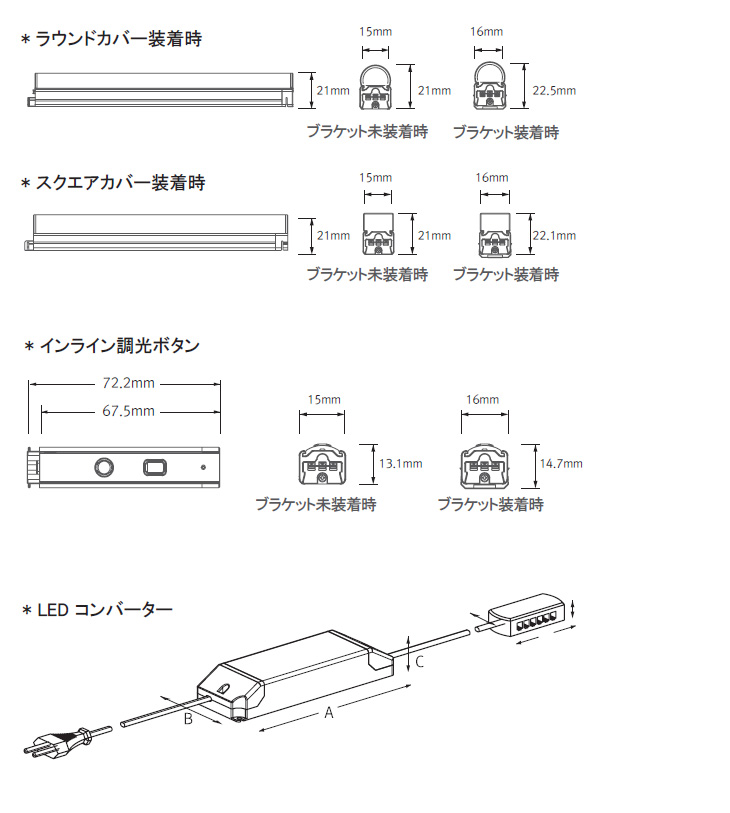

| Model Name | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| FLC30-24V/J | 150 | 41 | 31 |
| FLC75-24V/J | 180 | 60 | 32 |
| FLC200-24V/J | 250 | 65 | 38 |
