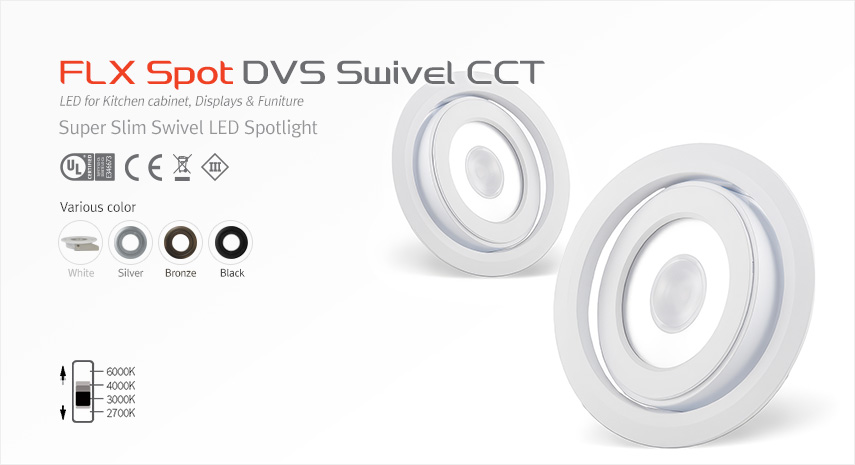

FLX Spot DVS Swivel CCT
- - Selectable Color Temperature (2700K / 3000K / 4000K / 6000K)
- - Linkable together with FLX series
- - Virtually no heat emission and no UV radiation
- - Available in white, black, Bronze, Silver
- - With constant voltage DC 24V driver
- - Dimmable with available accessories
- - Slim puck light

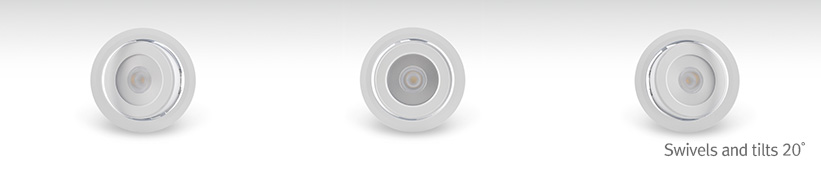

- - Swivel and tilts up to 20
Various options

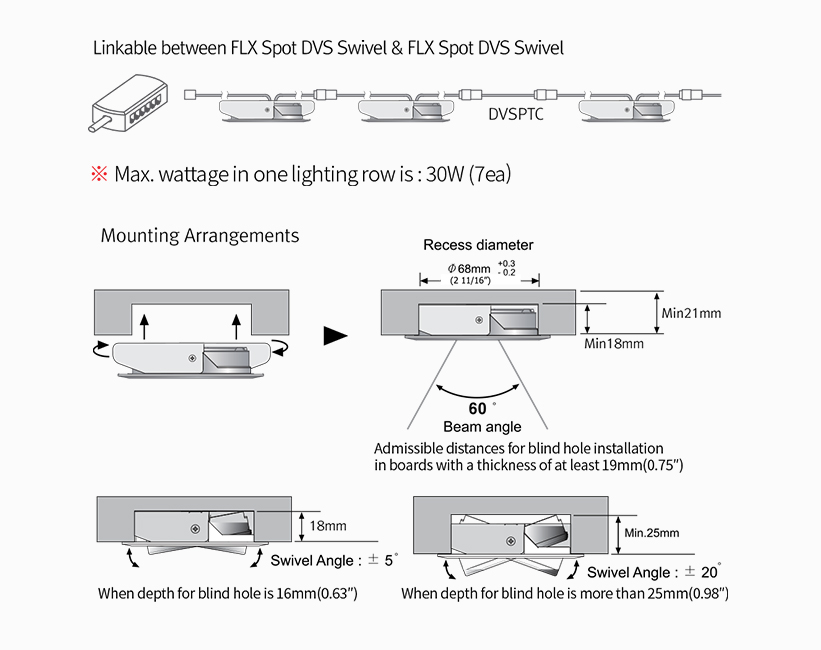

Max. connection FLX Spot DVS Swivel CCT : Max 7pcs in a row / LED Driver
| Model Name | Max. units for Led driver | |||
|---|---|---|---|---|
| 24V/30W | ||||
| DVS4A 40K-24V-SW | 7 | |||
| Model Name | Lamp Power | Color Temp (CCT) | Luminous Flux | Efficiency | Beam Angle |
|---|---|---|---|---|---|
| DVS4A 4SW-24V-SW-WT | 4.2 W | 2700K | 310.8 lm | 74 lm/w | 25 / 45 / 60 |
| 4.2 W | 3000K | 321.7 lm | 76.6 lm/w | ||
| 4.2 W | 4000K | 352.8 lm | 84 lm/w | ||
| 4.2 W | 6000K | 361.6 lm | 86.1 lm/w |
- - Color : White, Black, Silver, Gold
- - Power Input : DC 24V
- - Color Rendering : Ra > 90
- - Available Color : 2700K / 3000K / 4000K / 6000K
- - Operating Temperature : 0 ~ 45
 |
FLX Spot DVS Swivel |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

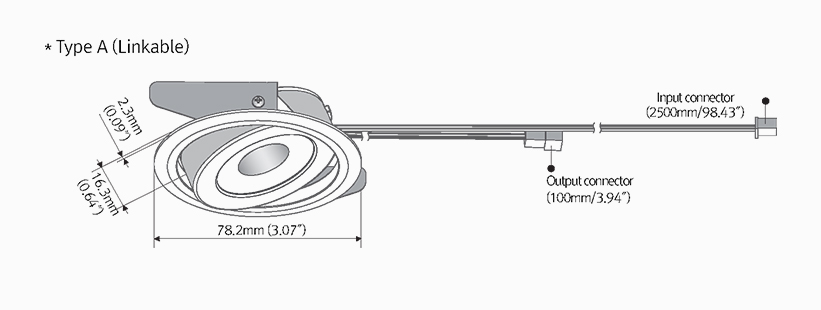

Extension cable : DVSPTC (2,500mm/98.43") | Between FLX Spot Swivel & FLX Spot DVS or 12 way distributor | ||||||||
 |
Connecting cable : NDVDVSPTC (1,000mm/39.37") | Between FLX Spot DVS Swivel & FLX Stix NDV | ||||||||
|
Connecting cable : NDPDVSPTC (1,000mm/39.37") | Between FLX Spot DVS Swivel & FLX Stix NDP | ||||||||
 |
Connecting cable : NDVPC (2,500mm/98.43) | Between FLX Stix NDV & FLX Spot DVS Swivel | ||||||||
|
Connecting cable : NDPPC (2,500mm/98.43) | Between FLX Stix NDP & FLX Spot DVS Swivel | ||||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||||
 |
12Port Hub | D12P-HUB Included with Cord and Plug drivers. Order separately for Hard Wire or 3rd Party Drivers |
||||||||
 |
LED Driver : FLC200-24V/T (200W, DC24V) | LED Driver With 12way distributor Spec | ||||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) Video Manual | ||||||||
 |
Dimming Interface(0-10/1-10V, DMX512) : FDA-L2M0 | Max. 200W (100W/CH, 2CH) Manual | ||||||||
 |
Dimming Interface (Dali) : FDD-L1DA |
Max. 200W (100W/CH, 1CH) | ||||||||
 |
Dimming Interface (CASAMBI, Bluetooth) | FDD-L2B(Max, 200W) | ||||||||
 |
Dimming Interface (Zigbee) | FDD-L2Z : Max. 200W (100W/CH, 2CH) | ||||||||
|
Switch (Zigbee) | FSM-Z1 : Wireless Control | ||||||||
|
Control Interface : FDD-L20 | Max. 200W (100W/CH, 1CH) Video Manual |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
