FLXible Neon eXterior 2

Feelian
  • - Seamless Spot-Free Illumination
  • - Ultra Slim Design
  • - Close Pitch LEDs
  • - Vertical Bending Flexibility
  • - Dimmable
  • - Optimized for Outdoor Use (IP 67 Rated)
  • - Dow Chemical SILASTIC ET-7021 silicone material high transparency and strength
  • - Field Cut-table (50mm)
  • - Available in Standard Length 1, 2, 3, 4, 5 M Reels
SPECIFICATIONS TABLE
Model Name Lamp Power Lumen/W Luminous Flux (Full Brightness) Color Temperature
FNX2 21K-24V-C90 10 W/m 56.53 lm/W 565.3 lm 2,100K
FNX2 24K-24V-C90 59.68 lm/W 596.8 lm 2,400K
FNX2 27K-24V-C90 63.02 lm/W 630.2 lm 2,700K
FNX2 30K-24V-C90 67.99 lm/W 679.9 lm 3,000K
FNX2 35K-24V-C90 71.81 lm/W 718.1 lm 3,500K
FNX2 40K-24V-C90 70.85 lm/W 708.5 lm 4,000K

  • - IP Rate : IP67 with Factory Termination (Customized Length Available)
  • - Lamp Power : 10 W/m
  • - Power Input : 24V DC
  • - Color Rendering : Ra > 90
  • - Operating Temperature Ranges : -20 ~ 50 (-4F ~ 122F)
  • - Maximum Length : 5,000 mm
  • - Minimum Length : 50 mm

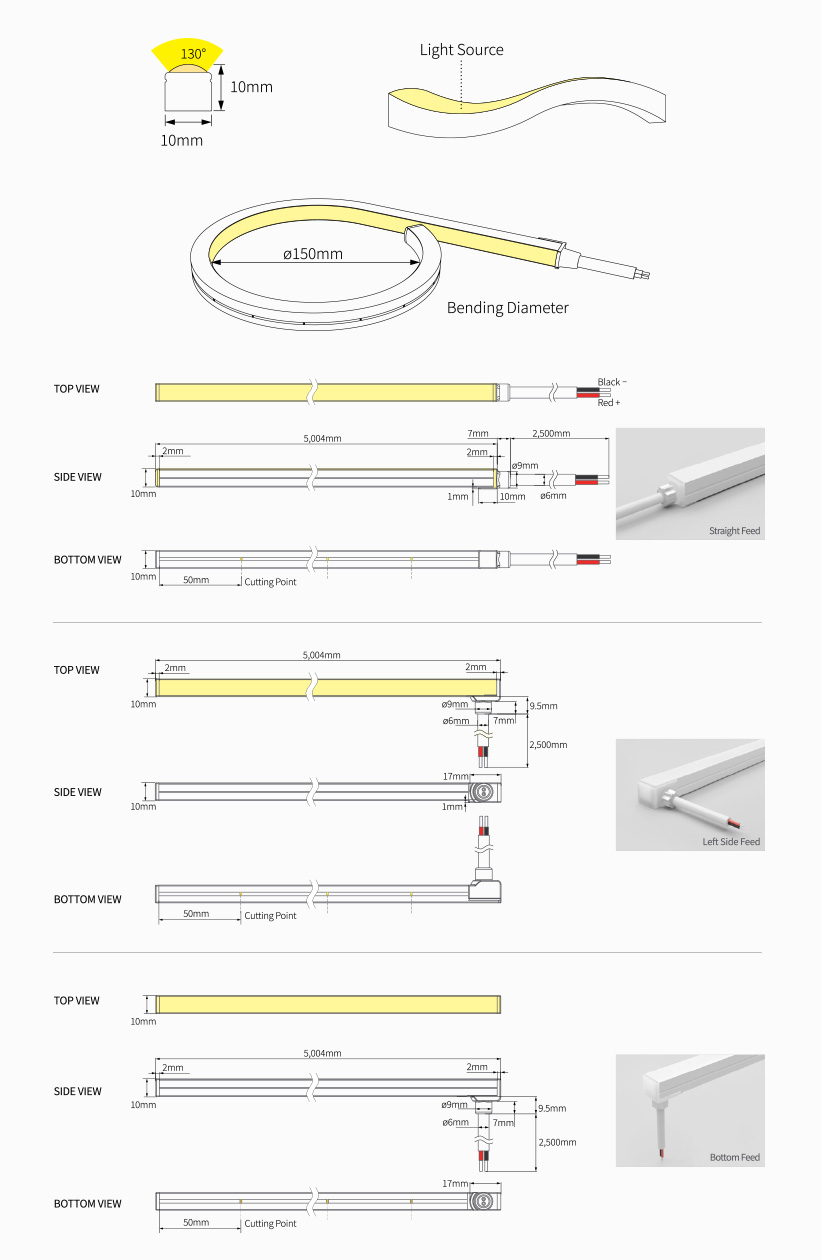

  • - Minimum Bending Diameter : 150 mm
  • - Beam Angle : 130
  • - Material : Silicone
԰
Aceessories
FLXible Neon eXterior2 FLXible Neon eXterior2 FNX2-(color)K-24V-C90-5m
FNX2-(color)K-24V-C90-4m
FNX2-(color)K-24V-C90-3m
FNX2-(color)K-24V-C90-2m
FNX2-(color)K-24V-C90-1m
FLXible Neon eXterior2-Left Side Feed FLXible Neon eXterior2
Left Side Feed		 FNX2-(color)K-24V-C90-LS-5m
FNX2-(color)K-24V-C90-LS-4m
FNX2-(color)K-24V-C90-LS-3m
FNX2-(color)K-24V-C90-LS-2m
FNX2-(color)K-24V-C90-LS-1m
FLXible Neon eXterior2-Bottom Feed FLXible Neon eXterior2
Bottom Feed		 FNX2-(color)K-24V-C90-BS-5m
FNX2-(color)K-24V-C90-BS-4m
FNX2-(color)K-24V-C90-BS-3m
FNX2-(color)K-24V-C90-BS-2m
FNX2-(color)K-24V-C90-BS-1m
Field Termination Field Termination FNX2-FTKIT
Field Termination - Bottom feed Field Termination
- Bottom feed 		FNX2-FTKIT-BS
Field Termination- Left side feed Field Termination
- Left side feed		 FNX2-FTKIT-LS
Field Termination - End Cap Field Termination - End Cap FNX-ENDCAP

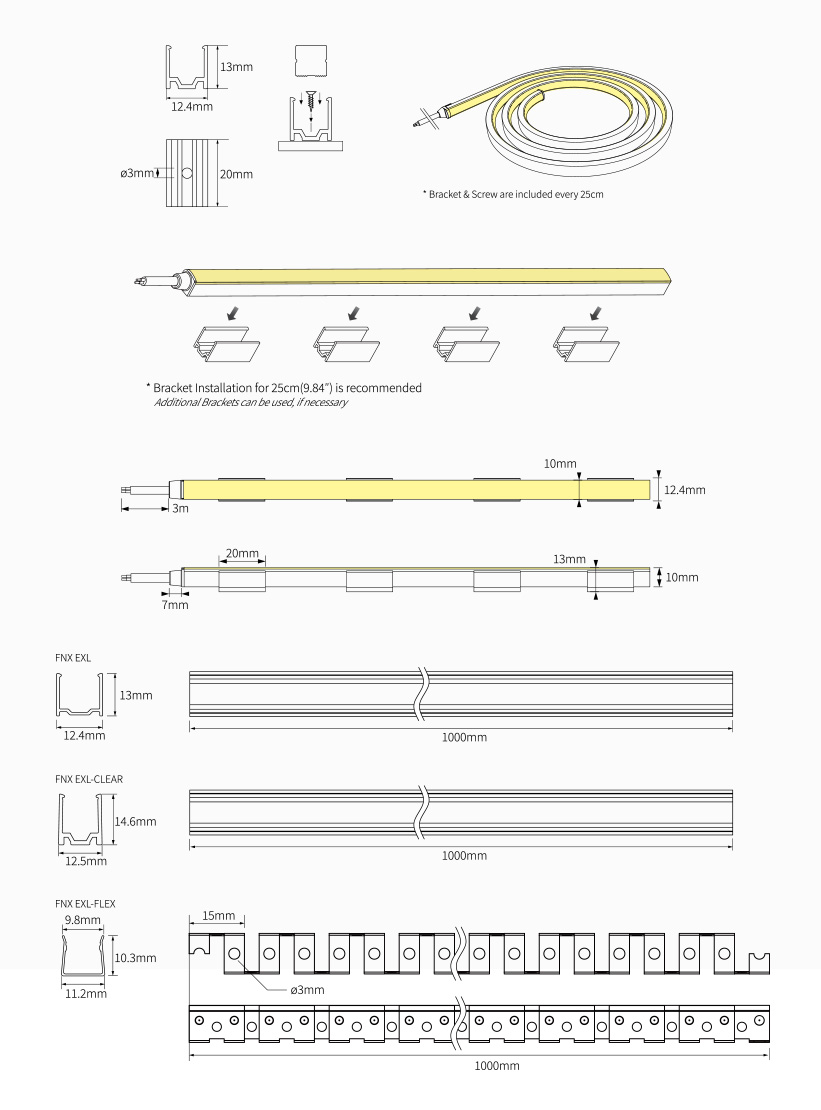

Mounting Brackets Mounting Brackets FNX-Bracket
Extrusion Line Extrusion Line FNX-EXL(1,000mm)
PC Extrusion Line PC Extrusion Line FNX-EXL-Clear(1,000mm)
Flexible Extrusion Line Flexible Extrusion Line FNX-EXL-FLEX(1,000mm)
Dimming Dimming Interface(0-10V) FDC-L10
Max. 100W(100W/CH, 1CH) Video Manual
Dimming Control Interface(DALI) FDD-L1DA
Max. 200W (100W/CH, 1CH)
Dimming Dimming Interface FDA-L2MO(0-10V/1-10V, DMX512)
Max. 200W (100W/CH, 2CH)

FDA-L5M (DMX512)
Max. 200W (50W/CH, 5CH)
Dimming Dimming Interface(CASAMBI, Bluetooth) FDD-L2B(Max, 200W)
Dimming Dimming Interface(0-10V/1-10V) FDD-L20
12 Port Hub 12 Port Hub D12P-HUB Included with Cord and Plug drivers.
Order separately for Hard Wire or 3rd Party Drivers
LED Converter LED Driver with 12way distributor, with power cord (1,800mm)
Max. connection
Part No FLC30-24V/T Spec FLC75-24V-P/T Spec
Capacity 30W 24V 75W 24V
with distributor and power cord (1,800mm)
LED Driver LED Driver FLC200-24V/T (200W) with 12way disributor Spec
ġ

Looking for additional information about us and our products?
Below links are available for you to download/view additional brochure and technical Photometric information. You may need to download required programs to execute following extension files

 Specification Sheets  IES data
