FLX Stix NDPro

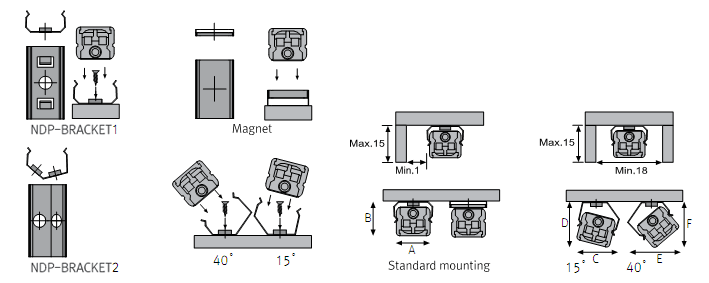

Installation
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | |
|---|---|---|---|---|---|---|
| FLX Stix NDPro | 11.9 | 11.2 | 13.5 | 13.5 | 14.5 | 13 |
| A(in) | B(in) | C(in) | D(in) | E(in) | F(in) | |
|---|---|---|---|---|---|---|
| FLX Stix NDPro | 15/32 | 7/16 | 17/32 | 17/32 | 37/64 | 33/64 |

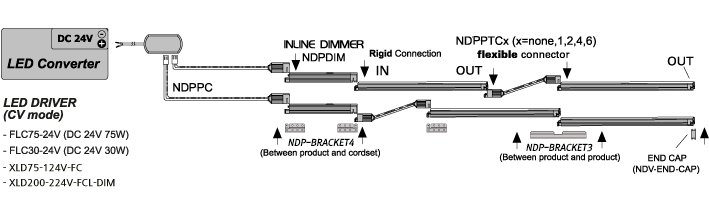

Connection

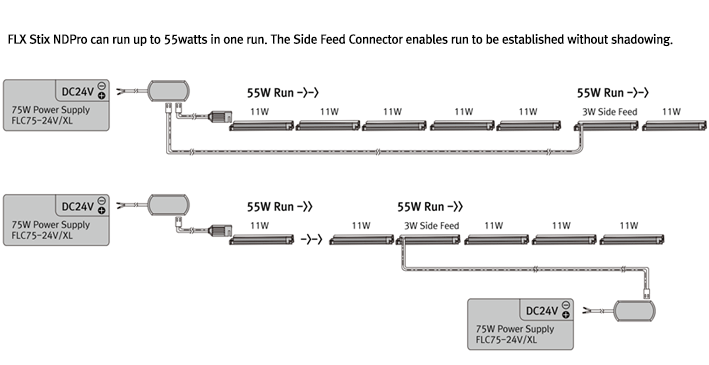

Side feed wiring diagram
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | |
|---|---|---|---|---|---|---|
| FLX Stix NDPro | 11.9 | 11.2 | 13.5 | 13.5 | 14.5 | 13 |
| A(in) | B(in) | C(in) | D(in) | E(in) | F(in) | |
|---|---|---|---|---|---|---|
| FLX Stix NDPro | 15/32 | 7/16 | 17/32 | 17/32 | 37/64 | 33/64 |
