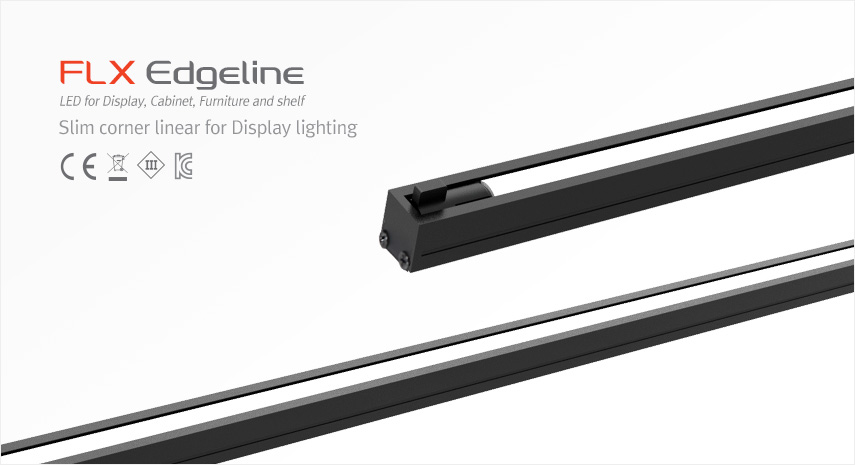

FLX Edgeline
- - Light module tiltable ±30° (left/right)
- - Super slim design
- - Various length available
- - Miniature lighting for furniture, showcase, museum
- - Surface, Recessed type available
- - Lens, Diffuser type available
- - Dimmable
| Type | Model number | Voltage Input (V) | Power Input (W) | Luminous Flux (lm) | Luminous Efficacy (lm/W) | Beam angle | Color Rendering | A(mm) | B(mm) | C(mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lens type | Surface | EGL4-30K-24V-52-C90-SL | DC 24V | 3.98 W | 288.6 lm | 72.4 lm/W | 52° | Ra>90 | 258 mm | 227 mm | - |
| EGL9-30K-24V-52-C90-SL | 8.67 W | 642.6 lm | 74.1 lm/W | 558 mm | 527 mm | - | |||||
| EGL14-30K-24V-52-C90-SL | 13.43 W | 964.8 lm | 72 lm/W | 858 mm | 827 mm | - | |||||
| EGL19-30K-24V-52-C90-SL | 18.90 W | 1403.5 lm | 74.2 lm/W | 1158 mm | 1127 mm | - | |||||
| Recessed | EGL4-30K-24V-52-C90-RL | 3.98 W | 288.6 lm | 72.4 lm/W | 258 mm | 227 mm | 264.5 mm | ||||
| EGL9-30K-24V-52-C90-RL | 8.67 W | 642.6 lm | 74.1 lm/W | 558 mm | 527 mm | 564.5 mm | |||||
| EGL14-30K-24V-52-C90-RL | 13.43 W | 964.8 lm | 72 lm/W | 858 mm | 827 mm | 864.5 mm | |||||
| EGL19-30K-24V-52-C90-RL | 18.90 W | 1403.5 lm | 74.2 lm/W | 1158 mm | 1127 mm | 1164.5 mm | |||||
| Diffuser type | Surface | EGL4-30K-24V-C90-SM | DC 24V | 3.99 W | 187.6 lm | 46.9 lm/W | 112° | 258 mm | 227 mm | - | |
|
12 Port Hub | __12 Way distributor Included with Cord and Plug drivers. Order separately for 3rd Party Drivers |
|---|---|---|
|
LED Drivers | __FLC30-24V/T (30W) __FLC75-24V/T (75W) with distributor and power cord (1,800mm) |
|
LED Driver | __FLC200-24V/T (200W) with 12way distributor |
|
Door and motion sensor | __FLS-M24V |
|
Occupancy sensor | __FLS-P24V |
|
Dimming Interface (0-10V/1-10V) | __FDC-L10 (Max. 100W) |
|
Dimming Interface (0-10V/1-10V) | __FDD-L20 |
|
Dimming Interface (0-10V/1-10V, DMX512) | FDA-L2MO (Max. 200W, 2CH) / FDA-L5M (Max. 200W, 5CH) |
|
Dimming Interface (Dali) | __FDD-L1DA Max. 200W (100W/CH, 1CH) |
|
Dimming Interface (Zigbee) | __FDD-L2Z |
|
Dimming Interface (CASAMBI, Bluetooth) | __FDD-L2B (Max. 200W) |
|
Wireless Control (Zigbee Switch) | __FSM-Z1 |
