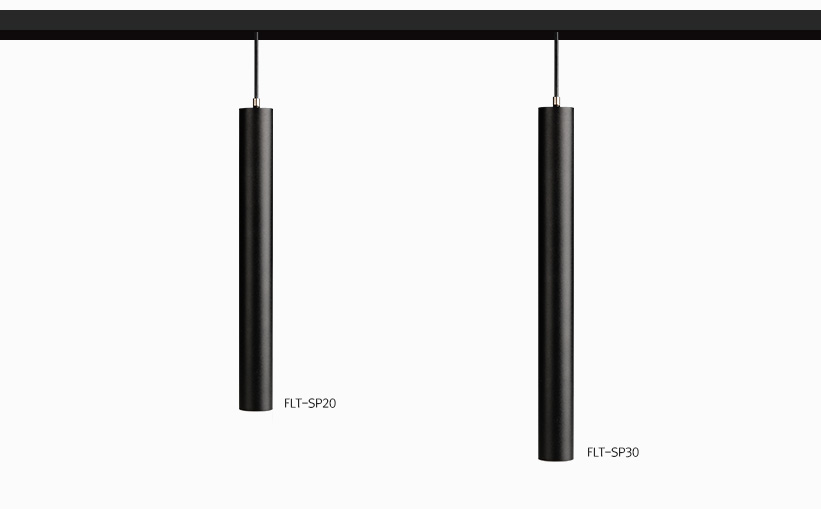

FLT-SP30
- - Magnetic system for easy installation and adjustment
- - Safe Low Voltage 24V DC

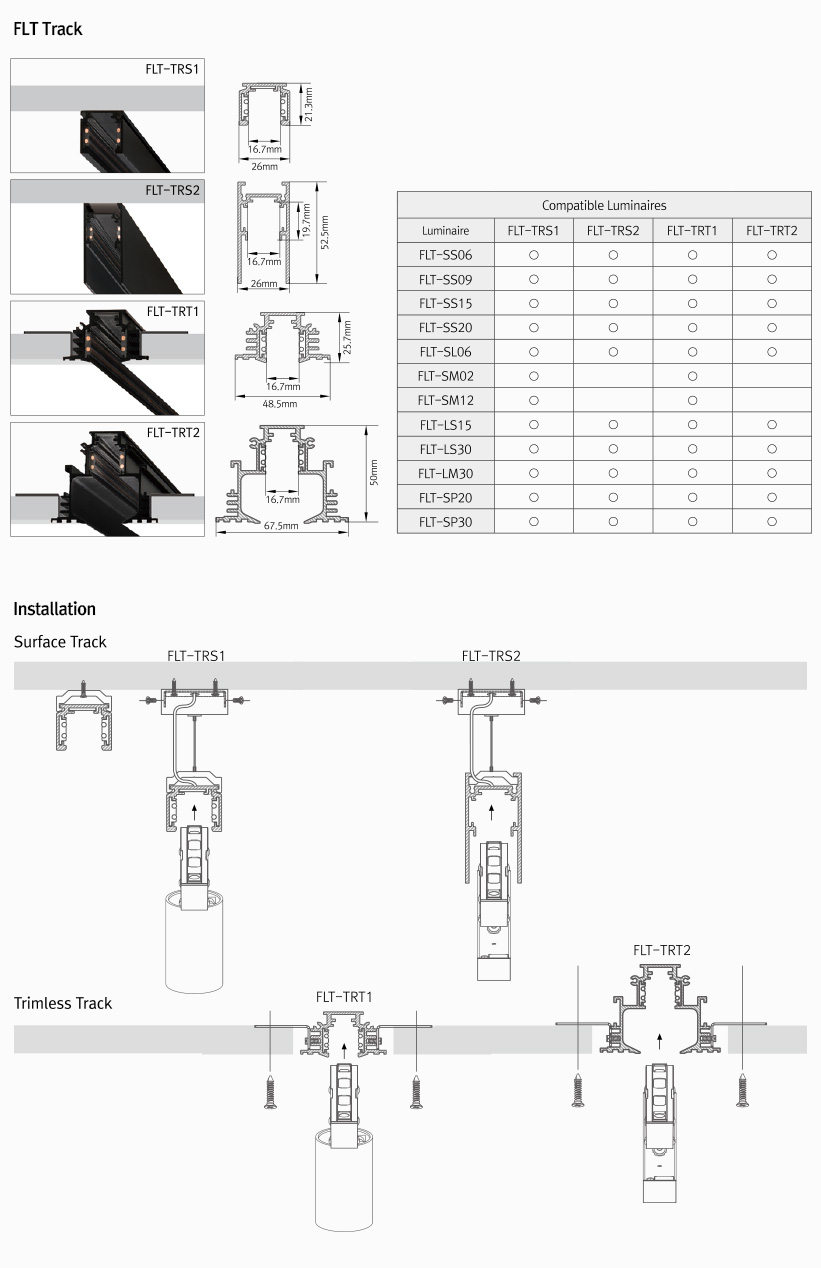

- - Surface, Recessed and Pendant mount track available
- - Double Joint Spot and Double-sided track available(up and down)
- - Black and White Finishes
- - Various light fixtures and beam angle
| Model Name | Lamp Power | Luminous Flux (3000K) | Efficiency | Beam Angle |
|---|---|---|---|---|
| FLT-SP30 30K-24V | 2.3 W | 113.6 lm | 50.44 lm/W | 15/24/36 |
- - Power Input : DC 24V
- - Operating Temperature : 0 ~ 45 (32F-32F)
- - Lamp Life: 50,000 hrs / 70%
- - Finishes: Black, White
- - Color Rendering : Ra > 90
- - Dimming: 0-10V, DALI, Forward/Reverse (with interface)
- - Available Color : 2,700K/3,000K/3,500K/4,000K
| Model Name | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | Beam Angle |
|---|---|---|---|---|---|---|
| FLT-SP30 30K-24V | 20.5 | 167 | 300 | 16 | 18 | 15/24/36 |
 |
Power Connector | FLTOPC-BK FLTOPC-WT |
||||||
|---|---|---|---|---|---|---|---|---|
 |
Direct Connector | FLTCPL-BK FLTCPL-WT |
||||||
 |
Direct Connector (Non-conductive) | FLTCPL-NC-BK FLTCPL-NC-WT |
||||||
 |
90 Connector | FLTCPL-90-BK FLTCPL-90-WT |
||||||
 |
90 Connector (Non-conductive) | FLTCPL-90-NC-BK FLTCPL-90-NC-WT |
||||||
 |
Flexible Connector | FLTPTC- FLEX-BK FLTPTC- FLEX-WT |
||||||
 |
Color Filter | FLT-Filter-20/R.G.B.Y(For SS20) FLT-Filter-09/R.G.B.Y(For SS06.09,15) |
||||||
 |
Honeycomb | FLT-Honeycomb-20(For SS20) FLT-Honeycomb-09(For SS06.09,15) |
||||||
 |
Anti-Glare Hood | FLT-Hood-20(For SS20) FLT-Hood-09(For SS06.09,15) |
||||||
 |
Suspension Power Kit for TRS1 | FLT-SK-POWER1-BK FLT-SK-POWER1-WT |
||||||
 |
Suspension Bracket for TRS1 | FLT-SK-BRACKET1-BK FLT-SK-BRACKET1-WT |
||||||
 |
Suspension Power Kit for TRS2 | FLT-SK-POWER2-BK FLT-SK-POWER2-WT |
||||||
 |
Suspension Bracket for TRS2 | FLT-SK-BRACKET2-BK FLT-SK-BRACKET2-WT |
||||||
 |
Joint Bracket for TRS1 | FLT-TRS1-JOINT-BK | ||||||
 |
Joint Bracket for TRS2 | FLT-TRS2-JOINT-BK FLT-TRS2-JOINT-WT |
||||||
 |
Joint Bracket for TRT1,2 | FLT-TRT-JOINT-BK | ||||||
 |
Holder for TRT1 Track | FLT-TRT1-HOLDER Hold Track when installing |
||||||
 |
Holder for TRT2 Track | FLT-TRT2-HOLDER Hold Track when installing |
||||||
 |
TRT WING for Trimless Track | FLT-TRT-WING | ||||||
 |
Fixture Remover | FLT-Remover | ||||||
 |
90 degree connector for TRT1 | FLT-TRT1-90 | ||||||
 |
90 degree connector for TRT2 | FLT-TRT2-90 | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (0-10/1-10, DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) |
||||||
 |
Dimming Interface (Dali) : FDD-L1DA | Max. 200W (100W/CH, 1CH) |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V-48V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
