DA02V10SE
| Channel | Input Signal | Out Power | Output Load | Rated Input |
|---|---|---|---|---|
| 2CH | DC 0-10V/1-10V | DC220-240V, PWM output 2CH | Max 10 pcs of AC dimming products per channel and up to 200W per channel | AC 220-240V, 50/60Hz |
• Dimension
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| DA02V10SE | 148 | 33 | 58 |

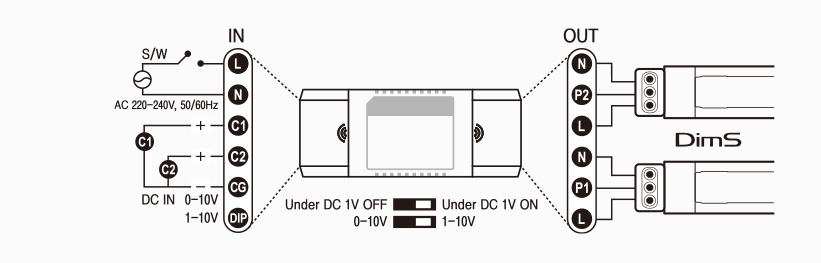

• Wiring
