Feelmaster
FeelMaster(Dimming System)
Feelmaster
• Specification
Model No : FM-IA2400
Channel : Max 64 channel
Support controller
WAN : 1 Port, 10/100 Base-T, RJ45
LAN : 1 Port, 10/100 Base-T, RJ45
WIFI : Compliant to IEEE802.11 b/g/n
Zigbee : Compliant to IEEE802.15.4
FeelNet : 1 Port (DMX512/RS485), RJ45
USB : USB2.0
Size : 100(W) X 100(D) X 25(H) mm
Input Voltage : DC 12V~24V
FSM-Z1 (ZIGBEE Switch)
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 x H14.5 x D70 (mm)
Output Signal : ZIGBEE

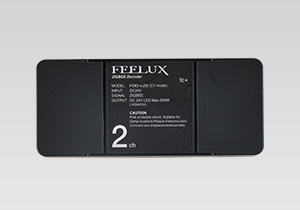

FDD-L2Z (ZIGBEE Interface)
• Specification
Model No : FDD-L2Z
Input Voltage : DC 24V
Output Load : DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 x H20 x D47 (mm)
Looking for additional information about us and our products?
Below links are available for you to download/view additional brochure and technical Photometric information. You may need to download required programs to execute following extension files
