FLXible Neon 1 Dual
- - Bend direction horizontally
- - Ultra slim spot free illumination
- - Dimmable with 0-10V, forward/reverse phase
- - Indoor and outdoor application
- - Field Cuttable (38.5mm) for customized length
- - Available in standard lengths of 1, 2, 3, 4, 5M reels
- - Tunable white
Powerfeed Type

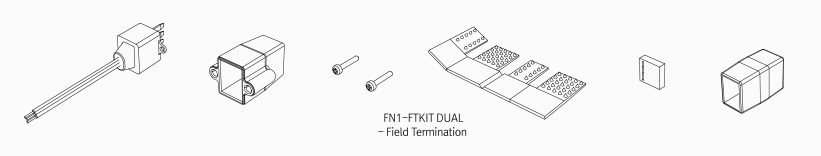

Field Termination
| Model Name | Power Input | Lamp Power | Lumens (Full Brightness) |
Color Temperature | Color Rendering | Operating Temperature |
|---|---|---|---|---|---|---|
| FN1 SC-24V-1M | DC 24V | 19.17 W | 504.6 lm | 2,200K ~ 4,000K | Ra > 80 | -10 to 50 |
- * IP Rate
IP67 with Factory Termination (Customized Length Available)
IP65 with Field Termination
IP20 with Indoor Termination
 |
FLXible Neon 1 Straight Feed (Customized Length Available) | FN1 SC-24V (5m) FN1 SC-24V (4m) FN1 SC-24V (3m) FN1 SC-24V (2m) FN1 SC-24V (1m) |
||||||
|---|---|---|---|---|---|---|---|---|
 |
FLXible Neon 1 Left Side Feed (Customized Length Available) | FN1 SC-24V-LS (5m) FN1 SC-24V-LS (4m) FN1 SC-24V-LS (3m) FN1 SC-24V-LS (2m) FN1 SC-24V-LS (1m) |
||||||
 |
FLXible Neon 1 Bottom Feed (Customized Length Available) | FN1 SC-24V-BS (5m) FN1 SC-24V-BS (4m) FN1 SC-24V-BS (3m) FN1 SC-24V-BS (2m) FN1 SC-24V-BS (1m) |
||||||
 |
Mounting Brackets | FN1-BRACKET1 : 1set = 4pcs | ||||||
 |
FN1 Extrusion Line (1,200mm) | FN1-EXL | ||||||
 |
Angled Brackets (15 & 40) | FN1-BRACKET2 : 1set = 4pcs | ||||||
 |
Expanding Stick | FN-EPS | ||||||
 |
Field Termination (IP65) | FN1-FTKIT-DUAL | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver : FLC200-24V/T (200W, DC24V) | LED Driver With 12way distributor Spec | ||||||
 |
Dimming Interface (0-10/1-10, DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) Manual |
||||||
 |
Control Interface : FDD-L20 | Max. 200W (100W/CH, 1CH) |
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V-48V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
