FLXible LED Tape
- - Various wattage option available
- - Easy installation with adhesive tape
- - Field cuttable for customized length
- - Flexible strip covered with soft silicon sleeve
- - Constant voltage DC24V drvier
- - RGBWW version available (Dimmable)
- * Without silicon sleeve type (Optional)
| Model Name | Lamp Power | Luminous Flux (lm) | Efficiency | Type |
|---|---|---|---|---|
| FTS5 40K-24V | 4.5 W | 480 lm | 107 lm/W | Sleeve type |
| FTS8 40K-24V | 7.5 W | 730 lm | 104 lm/W | |
| FTS10 40K-24V | 9.5 W | 1,010 lm | 101 lm/W | |
| FTS15 40K-24V | 15 W | 1,515 lm | 101 lm/W | |
| FT5 40K-24V | 4.5 W | 520 lm | 116 lm/W | Non Sleeve type |
| FT8 40K-24V | 7.5 W | 790 lm | 113 lm/W | |
| FT10 40K-24V | 9.5 W | 1,100 lm | 110 lm/W | |
| FT15 40K-24V | 15 W | 1,650 lm | 110 lm/W |
- - Power Input : DC 24V
- - Color Rendering : Ra > 90
- - Available Color : 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, RGBW
- - Operating Temperature : 0 ~ 45
- - IP : IP66
 |

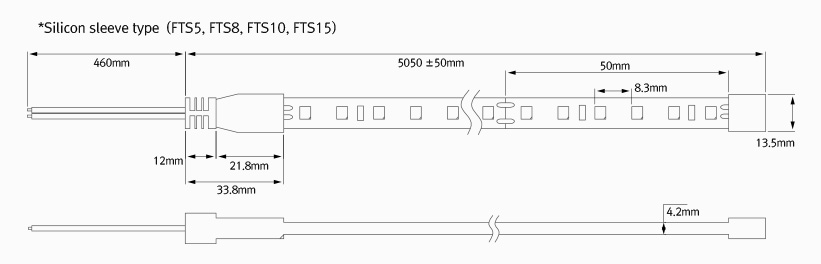

Flexible Tape (Sleeve type) | FTS5 (color)K-24V [5M] FTS8 (color)K-24V [5M] FTS10 (color)K-24V [5M] FTS15 (color)K-24V [5M] |
||||||
|---|---|---|---|---|---|---|---|---|
 |
Flexible Tape (Without Sleeve type) | FT5 (color)K-24V [5M] FT8 (color)K-24V [5M] FT10 (color)K-24V [5M] FT15 (color)K-24V [5M] |
||||||
 |
Power cord for sleeve type | FTSPC (500mm/1.64) | ||||||
 |
Direct connector for sleeve type | FTSCPL | ||||||
 |

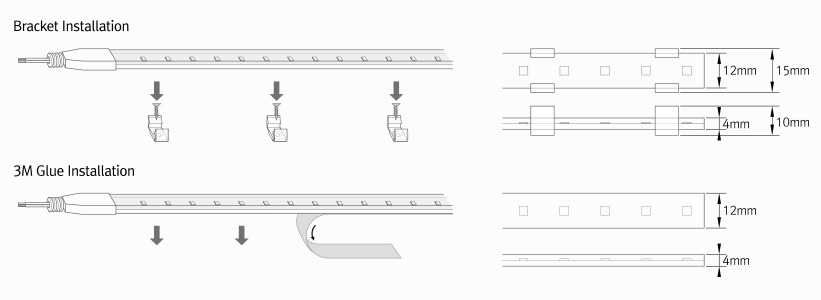

Mounting brackets | FTS-BRACKET | ||||||
 |
FTP Extrusion Line | FTP-EXL (1200mm/3.94) | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver : FLC200-24V/T (200W, DC24V) | LED Driver With 12way distributor Spec | ||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) Video Manual | ||||||
 |
Dimming Interface (0-10/1-10, DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) Manual |
||||||
 |
Dimming Interface (Dali) : FDD-L1DA | Max. 200W (100W/CH, 1CH) |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V-48V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
