MonoRail Spot HO
- - Compatible and linkable with MonoRail system

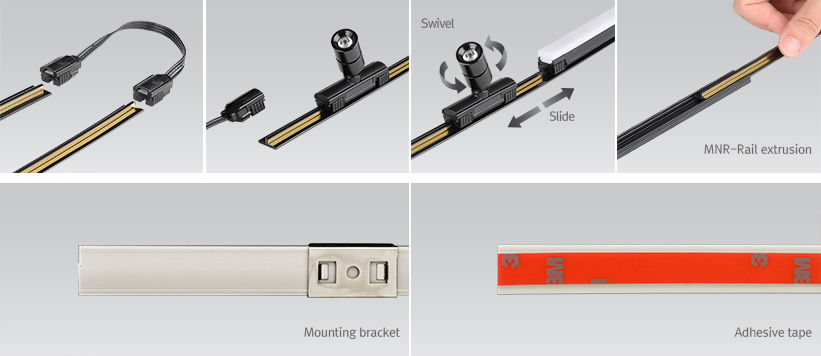

- - Slide and Swivel High Output LED Spotlight
- - Suitable for furniture and showcase application
- - Simple Plug & Play connection to the power track
- - Available in silver or black
- - To be used with constant voltage DC 24V driver
Various options
Max. connection MonoRail Spot HO: 180W in one row(Single powerfeed) / LED Driver
| Model Name | Max. units for LED Driver | |||
|---|---|---|---|---|
| 24V/30W | 24V/75W | 24V/200W | ||
| MRS3 40K-24V-SV | 11 | 28 | 76 | |
| Mode Name | Color | Luminous Flux | Efficiency |
|---|---|---|---|
| MRS3 40K-24V-SV-25 | Silver | 246 lm | 98 lm/W |
| MRS3 40K-24V-BK-45 | Black | 235 lm | 93 lm/W |
| MRS3 40K-24V-WT-60 | white | 226 lm | 90 lm/W |
- - Power Input : DC 24V
- - Lamp Power : 2.5 W
- - Color Rendering : Ra > 80
- - Available Color : 2,700K/3,000K/3,500K/4,000K/5,000K/5,700K
- - Beam Angle : 25, 45, 60
- - Operating Temperature : 0~45
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V-P/T | 180 | 60 | 32 |
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC200-24V/T | 228 | 68 | 39 |
 |
MonoRail Spot HO |
|
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Power supply track : MNR-Rail (20,000mm) | Color : White, Gray, Black | ||||||||||||||||
 |
Power supply track : MNR-Rail (1,200mm) | Color : White, Gray, Black | ||||||||||||||||
 |
Adhesive tape | MNR-Rail (16.5m) | ||||||||||||||||
 |
Power supply cable to the MNR-Rail : MNRPC (2,500mm) | 120W in one row (w/ terminal block) 180W in one row (w/o terminal block) * Available Color : Black, Gray |
||||||||||||||||
 |
Connecting cable between MNR-Rail |
* Available Color : Black, Gray |
||||||||||||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||||||||||||
 |
LED Driver : FLC200-24V/T (200W, DC24V) | LED Driver With 12way distributor Spec | ||||||||||||||||
 |
Bracket : MNR-BRACKET (standard) | |||||||||||||||||
 |
Bracket : MNR-BRACKET1 (optional) | |||||||||||||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) Video Manual | ||||||||||||||||
 |
Dimming Interface(0-10/1-10V, DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) Manual |
||||||||||||||||
 |
Dimming Interface (Dali) : FDD-L1DA |
Max. 200W (100W/CH, 1CH) | ||||||||||||||||
 |
Door and motion detection sensor (DC) : FLS-M24V | Voltage : DC 24V | ||||||||||||||||
 |
Human-body detection sensor (DC) : FLS-P24V | Voltage : DC 24V | ||||||||||||||||
 |
MNR-Rail Extrusion Surface (1,200mm) Without MNR-Rail |
|
||||||||||||||||
 |
MNR-Rail Extrusion Line (1,200mm) Without MNR-Rail |
|
||||||||||||||||
 |
MNR-Rail Extrusion Corner (1,200mm) Without MNR-Rail |
|
||||||||||||||||
 |
MNR-Rail Extrusion Pole (300mm/1,200mm) Without MNR-Rail |
|
||||||||||||||||
 |
MNR-Rail protection cover : MNR-Rail cover | Color : White, Gray, Black |
