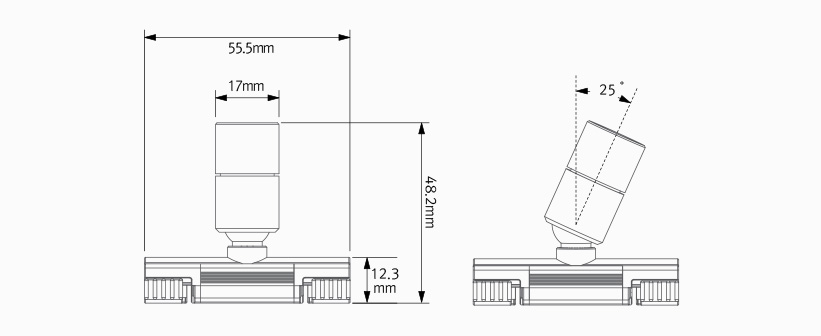

MonoRail Spot
- - Compatible and linkable with MonoRail system

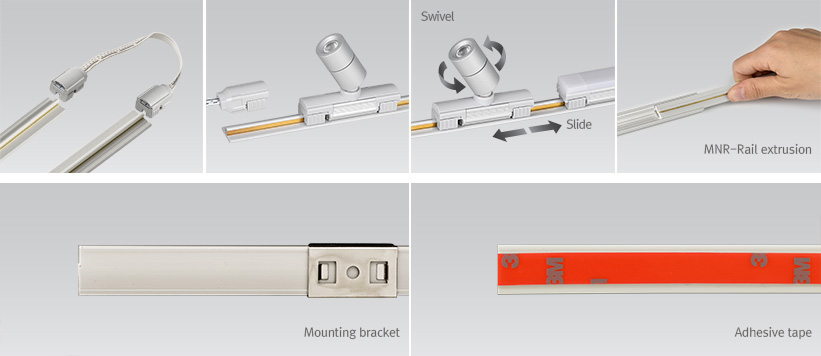

- - Slide and swivel mini LED spotlight

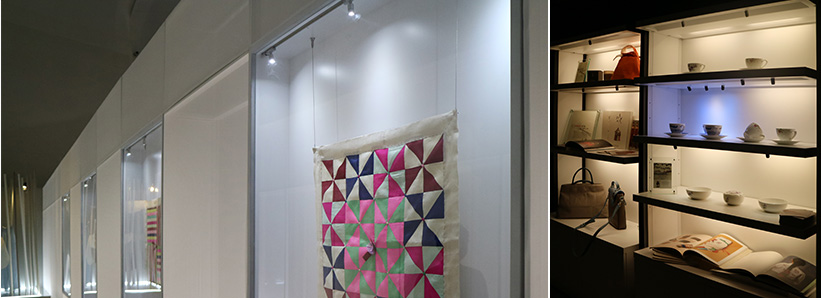

- - Suitable for furniture and showcase application
- - Simple Plug & Play connection to the power track
- - Available in silver or black
- - To be used with constant voltage DC 24V driver
Various options
Max. connection MonoRail Spot :180W in one row (Single power feed) / LED Driver
| Model Name | Max. units for LED Driver | |||
|---|---|---|---|---|
| 24V/15W | 24V/30W | 24V/75W | 24V/200W | |
| MRS1 40K-24V-SV | 10 | 20 | 52 | 140 |
| Mode Name | Color |
|---|---|
| MRS1 40K-24V-SV | Silver |
| MRS1 40K-24V-BK | Black |
- - Power Input : DC24V
- - Lamp Power : 1W
- - Luminous Flux : 65 lm
- - Efficiency : 65 lm/W
- - Color Rendering : Ra > 85
- - Available Color : 2,700K/3,000K/4,000K/6,000K
- - Beam Angle : 15, 35
- - Operating Temperature : 0~45

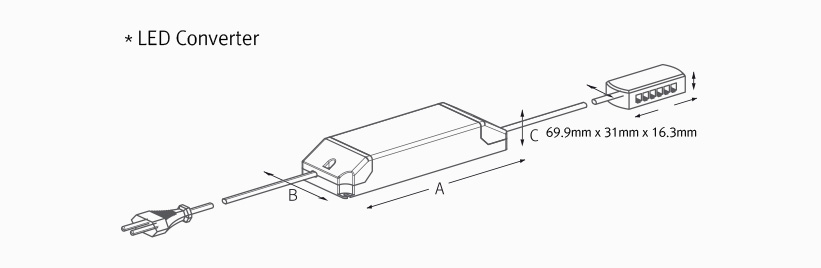

| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC15-24V/T | 121 | 45 | 16 |
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V/T | 180 | 60 | 32 |

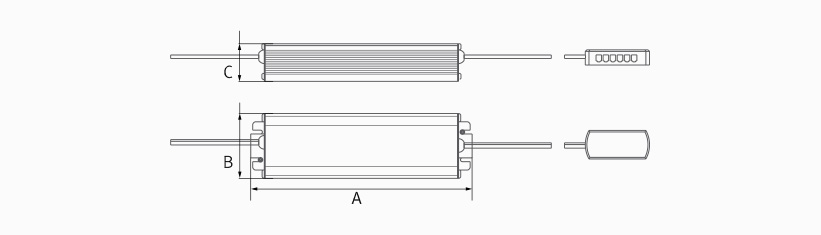

| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC200-24V/T | 228 | 68 | 39 |
 |
MonoRail Spot |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Power supply track : MNR-Rail (20m) | Power supply track in Roll without adhesive Color : White, Gray, Black |
||||||||||
 |
Adhesive tape | Adhesive tape for MNR-Rail (16.5m) | ||||||||||
 |
Power supply cable to the MNR-Rail : MNRPC (2500mm) | 120W in one row (w/ terminal block) 180W in one row (w/o terminal block) |
||||||||||
 |
Connecting cable between MNR-Rail |
|
||||||||||
 |
LED Driver with 12way distributor, with power cord (1800mm) |
|
||||||||||
 |
LED Driver : FLC200-24V/T (200W 24V) | LED Driver With 12way distributor Spec | ||||||||||
 |

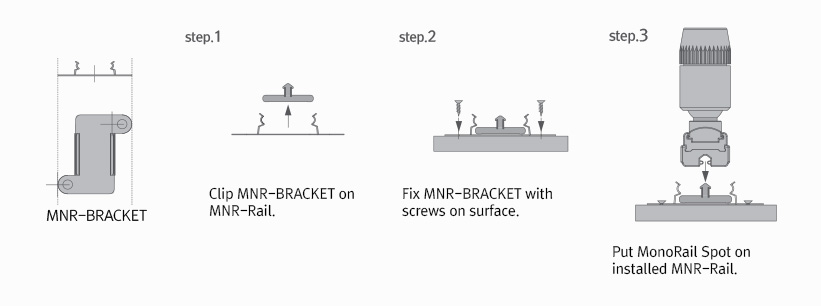

MonoRail bracket : MNR-BRACKET (standard) | |||||||||||
 |
MonoRail bracket : MNR-BRACKET1 (optional) | |||||||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) Video Manual | ||||||||||
 |
Door and motion detection sensor (DC) : FLS-M24V | Voltage : DC 24V | ||||||||||
 |
Human-body detection sensor (DC) : FLS-P24V | Voltage : DC 24V | ||||||||||
 |

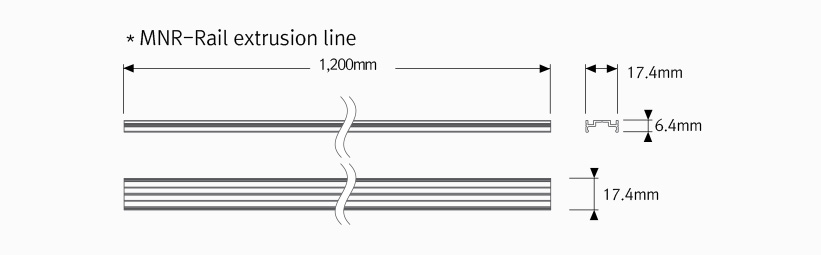

MNR-Rail extrusion line (1.2m) |
|
||||||||||
 |

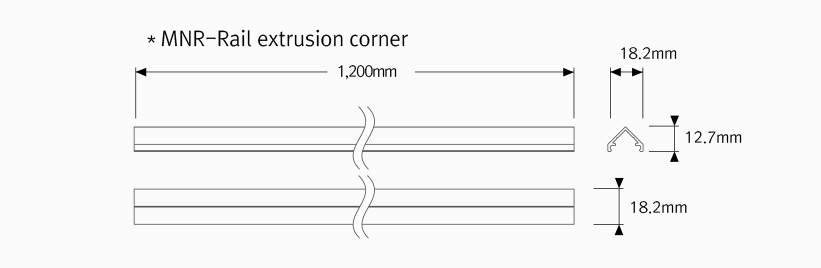

MNR-Rail extrusion corner (1.2m) |
|
||||||||||
 |

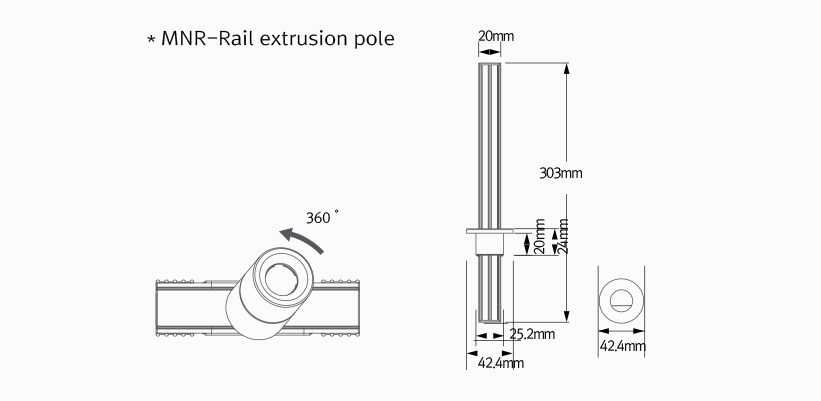

MNR-Rail extrusion pole (300mm) |
|
||||||||||
 |
End cap : MNR-CAP | Color : White, Gray, Black | ||||||||||
 |
MNR-Rail protection cover : MNR-Rail cover |
