TuneLight 2

Feelian
  • - AC Power driver built in
  • - Isolation circuit applied
  • - Perfect cabinet lighting with spot free
  • - Dimmable with available accessories
  • - On/off swich and motion sensor option

Various options

پƯ¡

Max. connection

  • - Max. connection(Dimming) : 20pcs
  • - Max. connection(Non-Dimming) : 400W
  •   7W(57pcs), 11W(36pcs), 15W(26pcs)
Max. connection
Model Name Lamp Power Lumens Efficiency
TUN7 40K-UNV-C90 7.4 W 444 lm 64 lm/W
TUN11 40K-UNV-C90 11.5W 763 lm 66 lm/W
TUN15 40K-UNV-C90 15.5 W 1,040 lm 67 lm/W
TUN7 40K-UNV-S 7.4 W 444 lm 64 lm/W
TUN11 40K-UNV-S 11.5W 763 lm 66 lm/W
TUN15 40K-UNV-S 15.5 W 1,040 lm 67 lm/W
  • - Power Input : AC 100~240V
  • - Color Rendering : Ra > 90
  • - Available Color : 2,700K/3,000K/3,500K/4,000K/5,700K
  • - Operating Temperature : 0 ~ 45
԰
Max. connection
Model Name Power Input (V) Lamp Power (W) A(mm) B(mm) C(mm)
TUN7 40K-UNV-C90 AC100~240 7.4 526 52 18
TUN11 40K-UNV-C90 AC100~240 11.5 836 52 18
TUN15 40K-UNV-C90 AC100~240 15.5 1,145 52 18
TUN7 40K-UNV-S AC100~240 7.4 526 52 18
TUN11 40K-UNV-S AC100~240 11.5 836 52 18
TUN15 40K-UNV-S AC100~240 15.5 1,145 52 18
Aceessories
ἱ Connecting cable for Non-dimming
Max. connection
TUNPTC/T TUNPTC1/T TUNPTC2/T TUNPTC4/T TUNPTC6/T
150mm (6inch) 300mm (1feet) 600mm (2feet) 1,200mm (4feet) 1,800mm (6feet)
ἱ Connecting cable for dimming
Max. connection
DTUNPTC/T DTUNPTC1/T DTUNPTC2/T DTUNPTC4/T DTUNPTC6/T
150mm (6inch) 300mm (1feet) 600mm (2feet) 1,200mm (4feet) 1,800mm (6feet)
Ŭ Power Cord (1,800mm) TUNPC230/T
Ŭ Power Cord (1,800mm) TUNPC230/SM2/T
Ŭ Open Power Cord (1,800mm) DTUNOPC230/T
Ŭ Open Power Cord DTUNOPC230/SM2/T
Ŭ Direct connector TUNCPL
Ŭ End Cap TUN-CAP
Ŭ Mounting bracket TUN-Bracket
Ŭ Mounting bracket TUN-Bracket1
Ŭ Dimming Interface (Phase to PWM translator) FDA-P1H : 1CH 200W (200W/CH, 1CH)
Ŭ Dimming Interface (DMX512 to PWM translator) FDA-P2M : 2CH Max 400W (200W/CH, 2CH)
Ŭ Dimming Interface (0-10V/1-10V to PWM translator) DA02V10SE : Max. 400W (200W/CH, 2CH)
Ŭ Motion sensors TUN-OSM
DA02V10SE (0-10V/1-10V to PWM translator) Video Manual

DA02V10SE (0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DC 0-10V/1-10V
Out Power : DC220-240V, PWM output 2CH
Output Load : Max 10 pcs of AC dimming products per channel and up to 200W per channel
Size : W139.8 X H58.4 X D33 (mm)
Rated Input : AC 220-240V, 50/60Hz

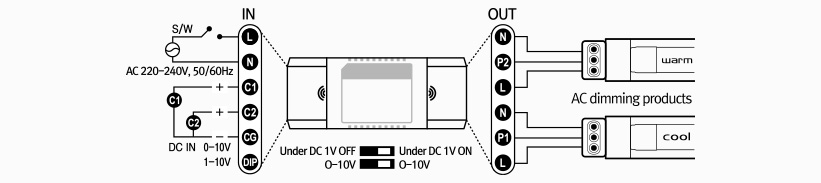

• Wiring

ǰἱ
FDA-P1H (Phase to PWM translator) Video Manual

FDA-P1H (Phase to PWM translator)

• Specification
Channel : 1CH
Input Signal : Phase
Output Signal : PWM
Output Load : Max 10 pcs of AC dimming products per channel and up to 200W per channel
Size : W200 X H50 X D35 (mm)
Rated Input : AC 220-240V, 50/60Hz, 2A

• Wiring

ǰἱ
FDA-P2M (DMX512 to PWM translator) Manual

FDA-P2M (DMX512 to PWM translator)

• Specification
Channel : 2CH (Up to 512CH extended)
Input Signal : DMX512
Output Signal : PWM
Output Load : Max 10 pcs of AC dimming products per channel and up to 200W per channel
Size : W200 X H50 X D35 (mm)
Rated Input : AC 220-240V, 50/60Hz, 3A

• Wiring

ǰἱ

Looking for additional information about us and our products?
Below links are available for you to download/view additional brochure and technical Photometric information. You may need to download required programs to execute following extension files

 TuneLight 2  IES data
