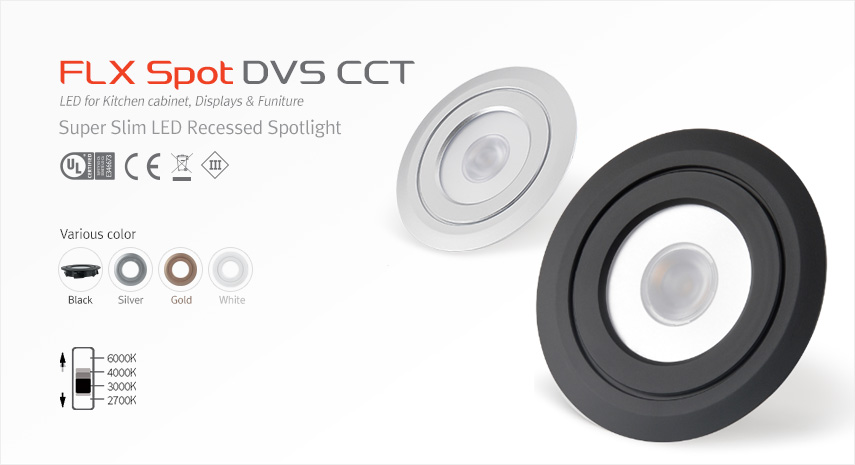

FLX Spot DVS CCT

Feelian

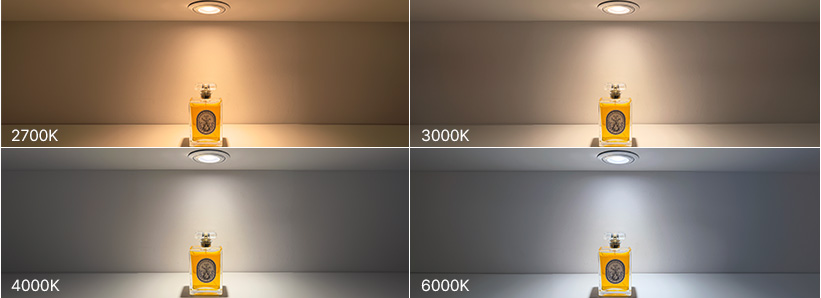

  • - Selectable Color Temperature (2700K / 3000K / 4000K / 6000K)
  • - Linkable together with FLX series
  • - Virtually no heat emission and no UV radiation
  • - Available in white, black, Gold, Silver
  • - With constant voltage DC 24V driver
  • - Dimmable with available accessories

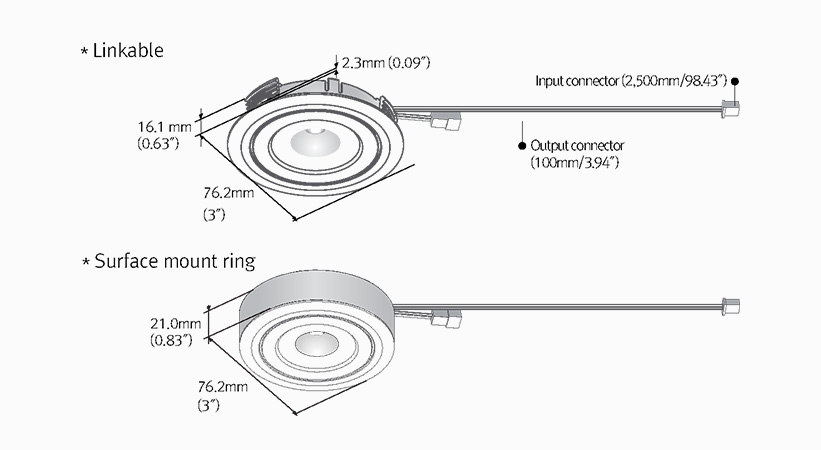

  • - Slim puck light

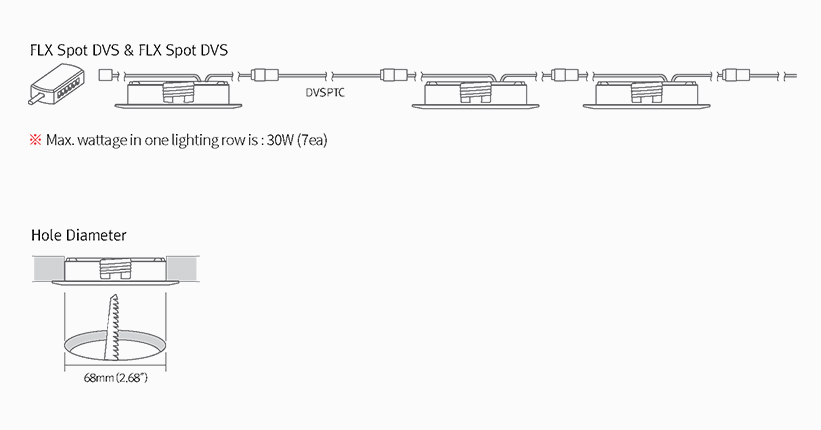

Max. connection of linked fixtures FLX Spot DVS CCT : Max 7pcs in a row / LED Driver

Max. connection
Model Name Max. units for Led driver
24V/30W
DVS4A 4SW-24V-WT 7
Product Specifications by CCT
Model Name Lamp Power CCT Luminous Flux Efficiency
DVS4A 4SW-24V-WT 4.2 W 2,700 K 310.8 lm 74.0 lm/w
DVS4A 4SW-24V-WT 4.2 W 3,000 K 321.7 lm 76.6 lm/w
DVS4A 4SW-24V-WT 4.2 W 4,000 K 352.8 lm 84.0 lm/w
DVS4A 4SW-24V-WT 4.2 W 6,000 K 361.6 lm 86.1 lm/w
  • - Color : White, Black, Silver, Gold
  • - Power Input : DC 24V
  • - Color Rendering : Ra > 90
  • - Beam Angle : 25, 45, 60
  • Available Color : 2,700K-3,000K-4,000K-6,000K(Standard)
  • - Operating Temperature : 0~45
԰
Aceessories
ἱ FLX Spot DVS CCT
Max. connection
White Black Gold Silver
DVS4A 4SW-24V-WT DVS4A 4SW-24V-BK DVS4A 4SW-24V-GD DVS4A 4SW-24V-SV
Ŭ Extension cable : DVSPTC (2500mm) Between FLX Spot DVS & FLX Spot DVS or 6 way distributor
Ŭ Connecting cable :
NDVDVSPTC (1000mm)		 Between FLX Spot DVS & FLX Stix NDV
鿬 Connecting cable : NDVPC (2500mm) Between FLX Stix NDV & FLX Spot DVS
Flexible LED Driver with 12way distributor, with power cord (1,800mm)
Max. connection
Part No FLC30-24V/T Spec FLC75-24V-P/T Spec
Capacity 30W 24V 75W 24V
12Port Hub 12Port Hub D12P-HUB
Included with Cord and Plug drivers. Order separately for Hard Wire or 3rd Party Drivers
End cap LED Driver : FLC200-24V/T (200W DC24V) LED Driver With 12way distributor Spec
LED Converter Dimming Interface (1-10V) : FDC-L10 Max. 100W (100W/CH, 1CH) Video Manual
End-CAP Dimming Interface (0-10/1-10,DMX512) FDA-L2M0 : Max. 200W (100W/CH, 2CH)
FDA-L5M : Max. 200W (50W/CH, 5CH)
Manual
Dimming Interface (Dali) : FDD-L1DA Dimming Interface (Dali) :
FDD-L1DA		 Max. 200W (100W/CH, 1CH)
End-CAP Surface mount ring
Max. connection
White Black Gold Silver
DVS MR-WT DVS MR-BK DVS MR-GD DVS MR-SV
End-CAP Deco Ring
Max. connection
White Black Gold Silver
DVS DR-WT DVS DR-BK DVS DR-GD DVS DR-SV
Dimming Interface (CASAMBI, Bluetooth) Dimming Interface (CASAMBI, Bluetooth) FDD-L2B(Max, 200W)
Dimming Interface (Zigbee) Dimming Interface (Zigbee) FDD-L2Z : Max. 200W (100W/CH, 2CH)
Switch (Zigbee) Switch (Zigbee) FSM-Z1 : Wireless Control
LED Converter Control Interface : FDD-L20 Max. 200W (100W/CH, 1CH) Video Manual
FDD-L1DA (DALI to PWM translator)

FDD-L1DA (DALI to PWM translator)

• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual

FDC-L10 (0-10V/1-10V to PWM translator)

• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDD-L20 (0-10V/1-10V to PWM translator)

FDD-L20 (0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual

FDA-L2MO (DMX512/0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FDA-L5M (DMX512 to PWM translator) Video Manual

FDA-L5M (DMX512 to PWM translator)

• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

ǰἱ
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL

FSM-Z1 (ZIGBEE Switch)

• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE

FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL

FDD-L2Z (ZIGBEE Interface)

• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)

ġ
