LuxFeel Interior Line
- - Indoor & Outdoor Application

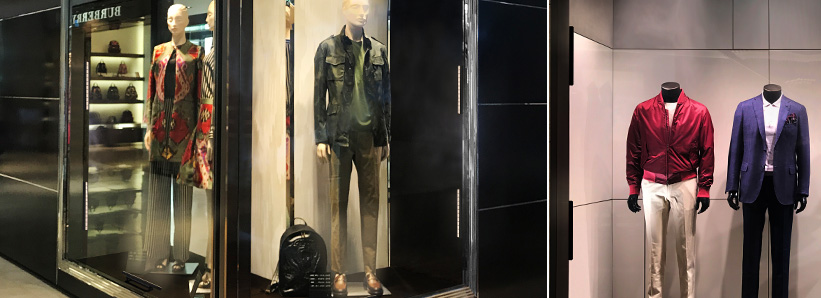

- - Versatile: Fitting shop, Hotel, Facades, Bridges, Gardens
- - IP 67: Water resistance and suitable for outdoor use
- - Adjustable product: Various Beam angle options

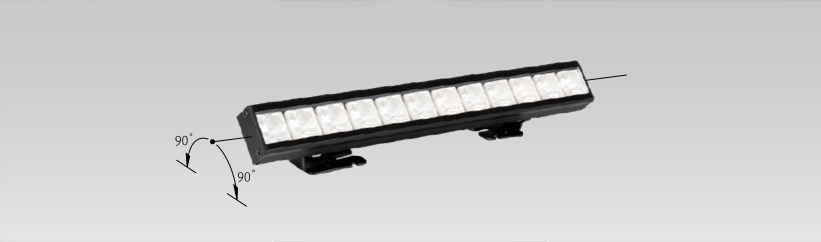

- - Rotatable product to be adjusted conveniently
- - High color rendering
- - Various length available
Light output
Notice
- - Max. connection : 100W in one row(single power feed)
| Model Name | Power Input | Lumens |
|---|---|---|
| LIL30 30K-24V-C90 | 12 W | 920 lm |
| LIL60 30K-24V-C90 | 24 W | 1,900 lm |
| LIL90 30K-24V-C90 | 36 W | 2,900 lm |
| LIL120 30K-24V-C90 | 48 W | 3,700 lm |
- - Voltage Input : DC 24V
- - Efficiency : 80 lm/W
- - Color Rendering : Ra > 90
- - Available Color : 3,000K/4,000K

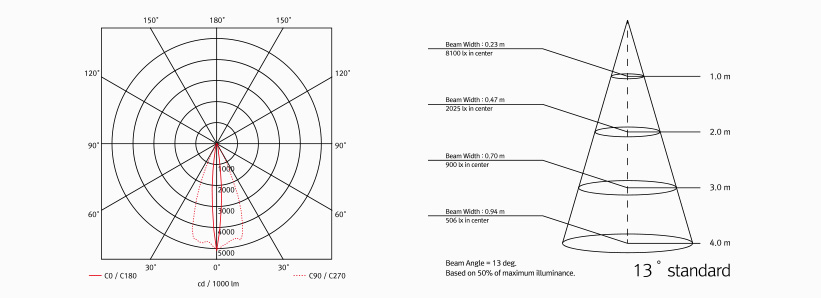

- - Beam Angle : 10x 60, 30, 40
- - IP : IP67
- - Color : Black, White
| Mode Name | L (Length/mm) |
|---|---|
| LIL30 30K-24V-C90 | 300 |
| LIL60 30K-24V-C90 | 600 |
| LIL90 30K-24V-C90 | 900 |
| LIL120 30K-24V-C90 | 1,200 |
| Mode Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V-P/T | 180 | 60 | 32 |
 |
Open Power cable : LILOPC (2,500mm) | * Available Color : Black, White | ||||||
|---|---|---|---|---|---|---|---|---|
 |
Connecting cable : LILPTC | LILPTC(150mm) LILPTC1(300mm) LILPTC2(600mm) LILPTC4(1,200mm) LILPTC6(1,800mm) |
||||||
 |
LED Driver with 12way distributor with power cord (1,800mm) |
|
||||||
 |
LED Driver : FLC200-24V/T (200W, DC24V) | LED Driver with 12way distributor | ||||||
 |
Dimming Interface(1-10V) : FDC-L10 | Max. 100W(100W/CH, 1CH) | ||||||
 |
Dimming Interface (0-10/1-10, DMX512) | FDA-L2M0 : Max. 200W(100W/CH, 2CH) FDA-L5M : Max. 200W(50W/CH, 5CH) |
||||||
 |
Dimming Interface (Dali) : FDD L1DA | Max. 200W(100W/CH, 1CH) |
