FTM-SS15
- - Ultra slim fixtures on easy magnetic rail system
- - Adjustable beam angle by zoom function
- - Available tilting up to 90
- - Safe with constant voltage DC 48V
- - Various Track options (Surface, Trimless and Pendant mount track available)
| Model Name | Lamp Power | Luminous Flux | Efficiency | Beam Angle |
|---|---|---|---|---|
| FTM-SS15 30K-48V | 15 W | 1,186.3 lm | 79.08 lm/W | 21/32/ 42 |
- - Power Input : DC 48V
- - Color Rendering : Ra > 90
- - Color Temperature(CCT) : 2,700K/3,000K/3,500K/4,000K
- - Operating Temperature : 0 ~ 45C (32-113F)

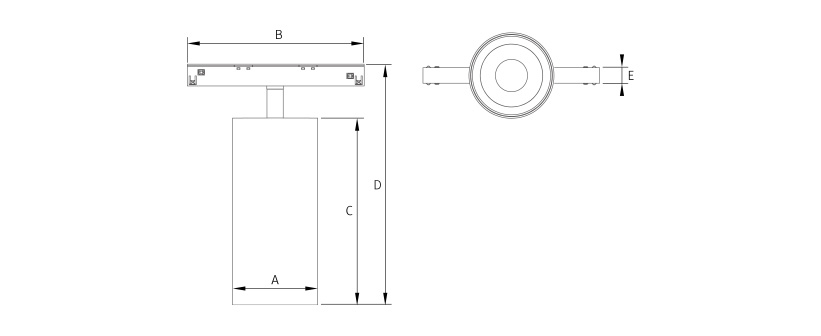

| Model Name | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
|---|---|---|---|---|---|
| FTM-SS15 30K-48V | 55 | 142.5 | 120 | 162.5 | 10.7 |
| Beam angle | Black | White |
|---|---|---|
| 21 | FTM-SS15 30K-48V-BK-21 | FTM-SS15 30K-48V-WT-21 |
| 32 | FTM-SS15 30K-48V-BK-32 | FTM-SS15 30K-48V-WT-32 |
| 42 | FTM-SS15 30K-48V-BK-42 | FTM-SS15 30K-48V-WT-42 |
 |
Power Connector | FTMOPC-BK FTMOPC-WT |
|---|---|---|
 |
Flexible Connector | FTMPTC-BK FTMPTC-WT |
 |
Direct Connector | FTMCPL-BK FTMCPL-WT |
 |
Joint Bracket for TRS1, TRT1, TRP |
FTM-JOINT1-BK |
|
Joint Bracket for TRS2, TRT2, TRP |
FTM-JOINT2-BK |
 |
Suspension Power Kit for TRP | FTM-SK-POWER-BK |
 |
LED Driver FLC200-48V/T (200W DC48V) |
LED Driver : FLC100-48V/T(100W DC48V) LED Driver With 12way distributor |
 |
Dimming Interface (0-10/1-10V) |
FDD-L20 Max. 400W (200W/CH, 2CH) |
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 48V LED Max. 400W (200W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 48V
• Wiring
