FLX Spot DVS Swivel Dim to Warm
- - Dim to Warm (1,800~3,000K)
- - Linkable together with FLX series
- - Virtually no heat emission and no UV radiation
- - Available in white, black
- - With constant voltage DC 24V driver
- - Dimmable with available accessories
- - Slim puck light
Various options
Max. connection FLX Spot DVS Swivel Dim to Warm : Max 7pcs in a row / LED Driver
| Model Name | Max. units for Led driver | |||
|---|---|---|---|---|
| 24V/30W | 24V/75W | 24V/200W | ||
| DVS4A CW-24V-SW | 7 | 17 | 47 | |
| Mode Name | Lamp Power | Luminous Flux | Efficiency | Beam Angle |
|---|---|---|---|---|
| DVS4A CW-24V-SW-WT | 3.6 W | 292 lm | 81 lm/w | 35, 50 |
- - Color : White, Black
- - Power Input : DC24V
- - Color Rendering : Ra > 90
- - Available Color : 1,800~3,000K
- - Operating Temperature : 0~45
 |

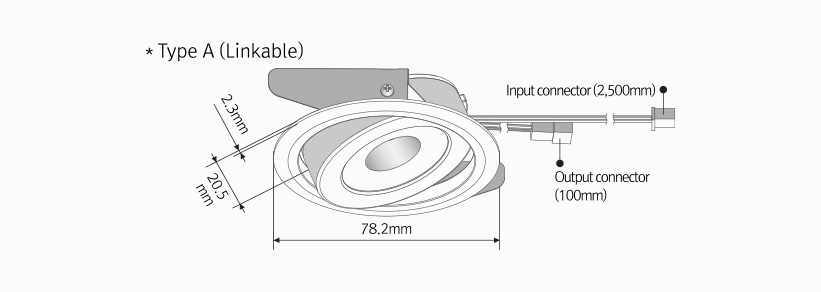

FLX Spot DVS Swivel Dim to Warm linkable type |
|
||||||
|---|---|---|---|---|---|---|---|---|
 |
Extension cable : DVSPTC (2,500mm) | Between FLX Spot Swivel & FLX Spot DVS or 12 way distributor | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver : FLC200-24V/T (200W, DC24V) | LED Driver With 12way distributor Spec | ||||||
 |
Control Interface : FDD-L20 | Max. 200W (100W/CH, 1CH) Video Manual | ||||||
 |
Dimming Interface (Zigbee) : FDD-L2Z, FSM-Z1(switch) | Max. 200W (100W/CH, 2CH) |
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V-48V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
Looking for additional information about us and our products?
Below links are available for you to download/view additional brochure and technical Photometric information. You may need to download required programs to execute following extension files
FLX Spot DVS Swivel Dim to Warm Specification Sheets IES data
