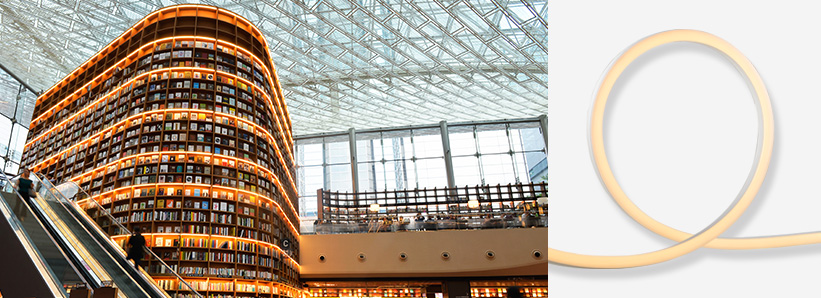

FLXible Neon 1
- - Bend direction horizontally
- - Ultra slim spot free illumination
- - Dimmable
- - Indoor and outdoor application
- - Field Cuttable (38.5mm) for customized length
- - Available in standard lengths of 1, 2, 3, 4, 5M reels
- - Fully sealed with Silicon material for wet location
Powerfeed Type
Field Termination
| Model Name | Luminous Flux (lm) | Color Temperature | Lumen/W |
|---|---|---|---|
| FN1 22K-24V-1M | 349 lm | 2,200K | 35lm/W |
| FN1 24K-24V-1M | 401 lm | 2,400K | 40lm/W |
| FN1 27K-24V-1M | 410 lm | 2,700K | 41lm/W |
| FN1 30K-24V-1M | 424 lm | 3,000K | 42lm/W |
| FN1 35K-24V-1M | 429 lm | 3,500K | 43lm/W |
| FN1 40K-24V-1M | 406 lm | 4,000K | 41lm/W |
- - Power Input : DC 24V
- - Lamp Power : 10 W
- - Color Rendering : Ra > 90
- - Operating Temperature : -10 to 50
- - Maximum Length : 5,005mm
- - Minimum Length : 38.5mm
- - Minimum Bending Diameter : 100mm
- - Beam Angle : 130
- - Material : Silicone
* IP Rate
IP67 with Factory Termination (Customized Length Available)
IP65 with Field Termination
IP20 with Indoor Termination
 |

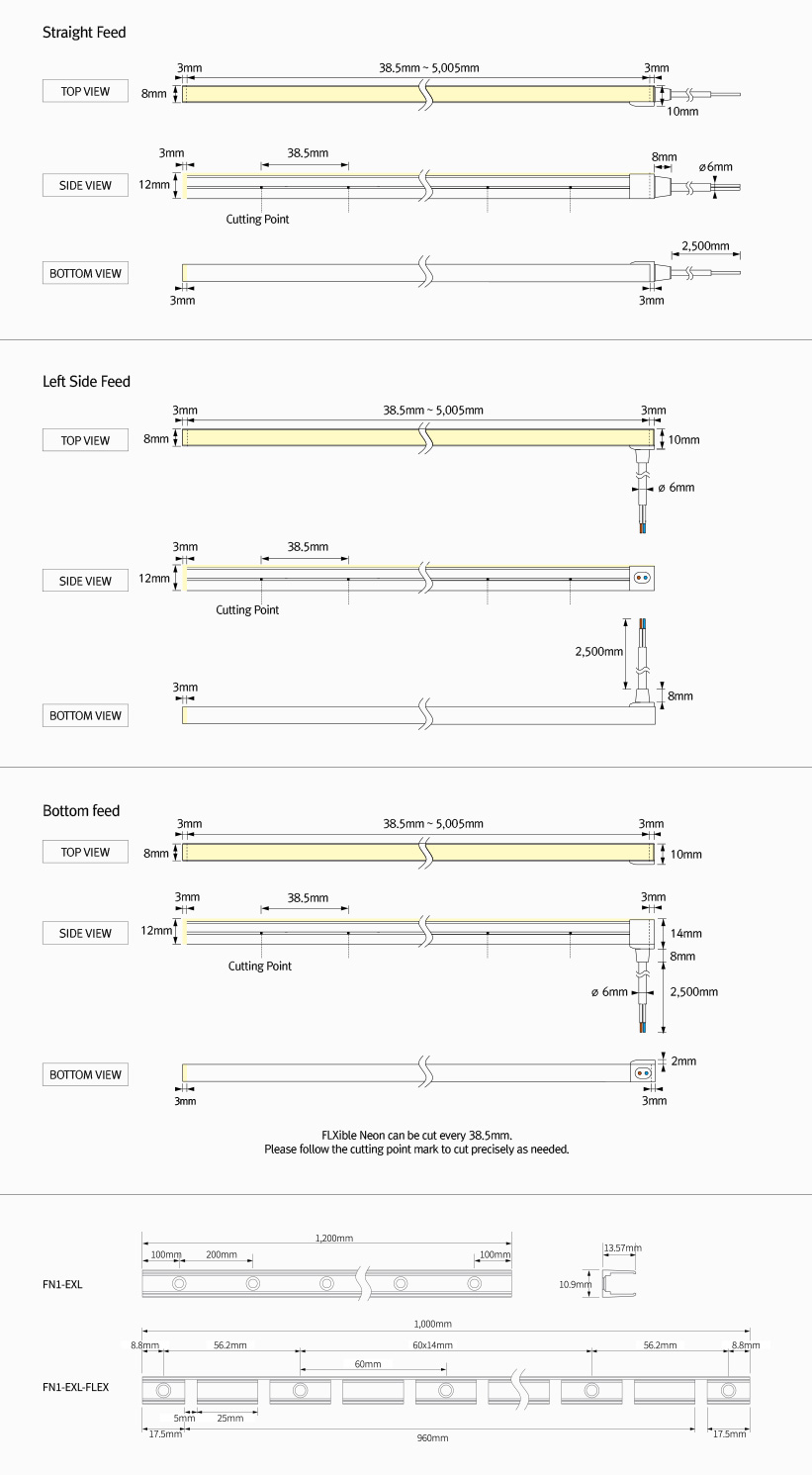

FLXible Neon 1 Straight Feed (Customized Length Available) | FN1 40K-24V (5m) FN1 40K-24V (2m) FN1 40K-24V (3m) FN1 40K-24V (2m) FN1 40K-24V (1m) |
||||||
|---|---|---|---|---|---|---|---|---|
 |
FLXible Neon 1 Left Side Feed (Customized Length Available) | FN1 40K-24V-LS (5m) FN1 40K-24V-LS (2m) FN1 40K-24V-LS (3m) FN1 40K-24V-LS (2m) FN1 40K-24V-LS (1m) |
||||||
 |
FLXible Neon 1 Bottom Feed (Customized Length Available) | FN1 40K-24V-BS (5m) FN1 40K-24V-BS (2m) FN1 40K-24V-BS (3m) FN1 40K-24V-BS (2m) FN1 40K-24V-BS (1m) |
||||||
 |
Mounting Brackets | FN1-BRACKET1, 1set = 4pcs | ||||||
 |
FN1 Extrusion Line (1,200mm) | FN1-EXL | ||||||
 |
Angled Brackets (15 & 40) | FN1-BRACKET2 : 1set = 4pcs | ||||||
 |
Expanding Stick | FN-EPS | ||||||
 |
Indoor Power Cable Straight Feed (Max.62.5W) | FN1-INPC (2,500mm) with END CAP | ||||||
 |
Indoor Power Cable Left Side Feed (Max.62.5W) | FN1-INPC-LS (2,500mm) with END CAP | ||||||
 |
Indoor Direct Connector | FN1-INCPL | ||||||
 |
Indoor Connecting Cable | FN1-INPTC (150mm) FN1-INPTC1 (300mm) FN1-INPTC2 (600mm) FN1-INPTC4 (1,200mm) FN1-INPTC6 (1,800mm) |
||||||
 |
Field Termination (IP65) | FN1-FTKIT | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver | FLC200-24V/T (200W) with 12way disributor Spec | ||||||
 |
Dimming Interface (1-10V) : FDC-L10 | FDC-L10 (Max. 100W) Video Manual | ||||||
 |
Dimming Interface | FDA-L2MO (0-10V/1-10V, DMX512) Max. 200W (100W/CH, 2CH) FDA-L5M (DMX512) Max. 200W (50W/CH, 5CH) Manual |
||||||
 |
Dimming Interface (Dail) | FDD-L1DA Max. 200W (100W/CH, 1CH) |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V-48V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
