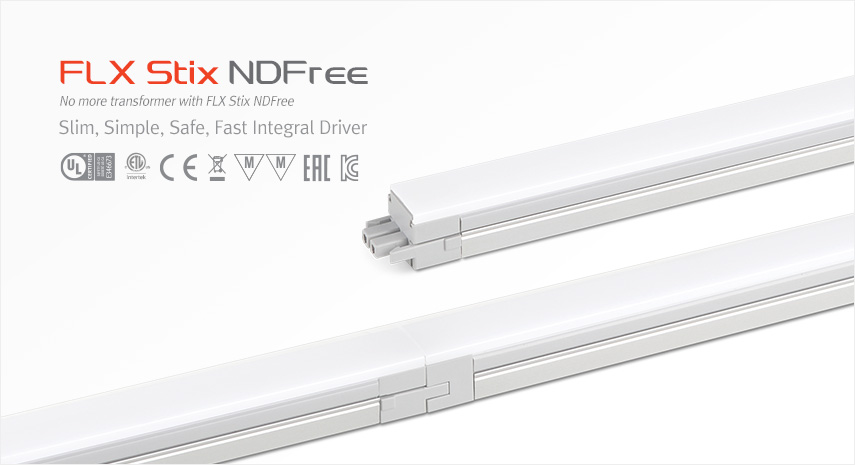

FLX Stix NDFree
- - Easy and quick installation, Long connection
- - LED driver is not requried (AC Direct Powered)
- - Innovative Slim design
- - Safe connection with locking system
- - No dark spot at the linkage point for seamless effect
- - Line voltage phase dimming
- - Compatible with 3rd party dimmers
- - Flicker Free
- - Various accessories option
Various options
Max. connection 400W in one row (single power feed)
| Model Name | Lamp Power | Luminous Flux | Efficiency |
|---|---|---|---|
| NDF3 40K-230V-C90 | 2.5 W | 212 lm | 85 lm/W |
| NDF5 40K-230V-C90 | 5 W | 340 lm | 64 lm/W |
| NDF10 40K-230V-C90 | 10 W | 720 lm | 72 lm/W |
| NDF15 40K-230V-C90 | 15 W | 1,080 lm | 72 lm/W |
| NDF20 40K-230V-C90 | 20 W | 1,440 lm | 72 lm/W |
- - Power Input : AC 220~240V
- - Power Factor : PF > 0.9
- - Color Rendering : Ra > 90
- - Available Color : 2,700K/3,000K/3,500K/4,000K
- - Operating Temperature : 0 ~ 45℃
| Model Name | Voltage Input (V) | Lamp Power (W) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
|---|---|---|---|---|---|---|---|---|---|
| NDF3 40K-230V-C90 | AC 220 ~ 240V | 2.5 | 147 | 156 | 178.7 | 19 | 18 | 18 | 16.8 |
| NDF5 40K-230V-C90 | AC 220 ~ 240V | 5 | 282.5 | 291.5 | 314 | 19 | 18 | 18 | 16.8 |
| NDF10 40K-230V-C90 | AC 220 ~ 240V | 10 | 560.5 | 569.5 | 592 | 19 | 18 | 18 | 16.8 |
| NDF15 40K-230V-C90 | AC 220 ~ 240V | 15 | 839 | 848 | 870.5 | 19 | 18 | 18 | 16.8 |
| NDF20 40K-230V-C90 | AC 220 ~ 240V | 20 | 1,117 | 1,126 | 1,148.5 | 19 | 18 | 18 | 16.8 |
 |
LED Power cord : NDF3 40K-230V-C90-PC | NDF3 (147mm) fixture with 1,800mm power cord | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LED open power cord : NDF3 40K-230V-C90-OPC | NDF3 (147mm) fixture with 1,800mm open power cord | ||||||||||
 |
Power cord : NDFPC/T (1,800mm) | |||||||||||
 |
Open power cord : NDFOPC/T (1,800mm) | |||||||||||
 |
LED 90˚Connector : NDF3 40K-230V-C90-90 | |||||||||||
 |
Flexible Connector : NDF3 40K-230V-C90-Flex | NDF3 Flex2 (359.5mm), NDF3 Flex3 (521.5mm), NDF3 Flex5 (830.5mm) | ||||||||||
 |
Connecting cable : NDFPTC/T |
|
||||||||||
 |
Mounting brackets : NDF-BRACKET1 |
1Set=3pcs Included with fixture | ||||||||||
 |
Angle bracket (15˚& 40˚) : NDF-BRACKET2 |
1Set=3pcs | ||||||||||
 |
Connecting bracket : NDF-BRACKET3 |
Included in fixture | ||||||||||
 |
End Cap : NDF-CAP | Included in fixture | ||||||||||
 |

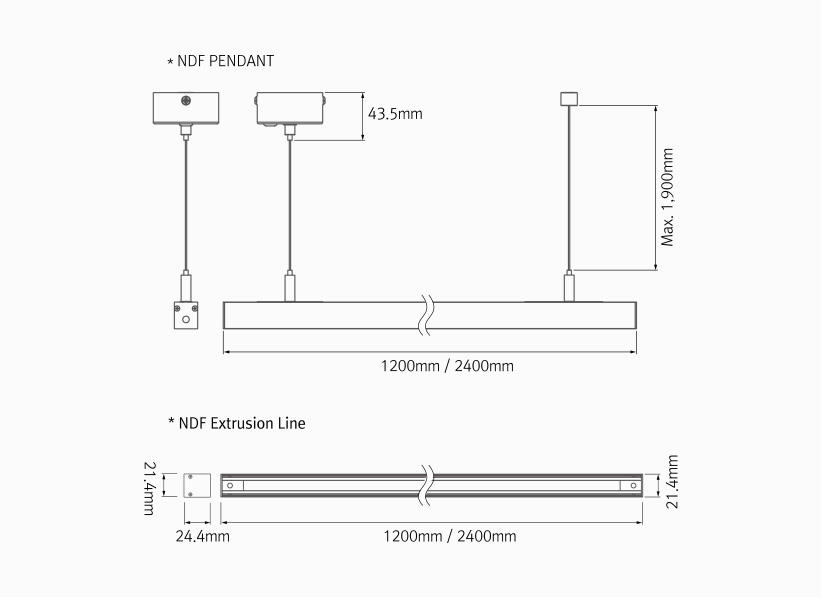

Suspension Bracket : NDF-SK-BRACKET | Suspension Bracket for NDF | ||||||||||
 |
Suspension Power Kit : NDF-SK-POWER | Suspension Power Kit for NDF | ||||||||||
 |
NDF Extrusion Line | NDF-EXL (1.2m), NDF-EXL (2.4m) | ||||||||||
 |
ON/OFF Switch : NDF-SW | |||||||||||
 |
Dimming Interface (Bluetooth) : FDS-H1B-SR | Max. 200W (100W/CH, 1CH) | ||||||||||
 |
Dimming Interface (Dali) : FDS-H1DA-SR | Max. 200W (200W/CH, 1CH) | ||||||||||
 |
Dimming Interface (Dali) : FDS-H2DA-SR | Max. 288W (144W/CH, 2CH) |
