FLX Stix HDV
- - Super Slim linear LED with high output
- - Quick connection system between fixtures
- - Many lengths available
- - Various mounting methods including magnetic
- - To be used with constant voltage DC 24V driver
- - Dimmable with available accessories
Various options
Max. connection FLX Stix HDV : 75W in one row(single power feed) / LED Driver
| Model Name | Max. units for LED Driver | |||
|---|---|---|---|---|
| 24V/30W | 24V/75W | 24V/200W | ||
| HDV3 40K-24V | 10 | 25 | 66 | |
| HDV6 40K-24V | 5 | 12 | 33 | |
| HDV12 40K-24V | 2 | 6 | 16 | |
| HDV18 40K-24V | 1 | 4 | 11 | |
| HDV24 40K-24V | 1 | 3 | 8 | |

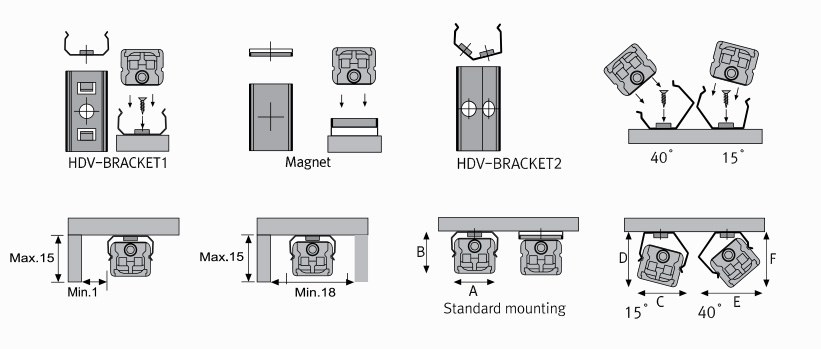

- W/ Bracket
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | |
|---|---|---|---|---|---|---|
| Flat type | 16.8 | 14.2 | 17.5 | 16.5 | 19.1 | 17.5 |
| Round type | 16.8 | 22.1 | 18.8 | 24.4 | 23.4 | 22.9 |
| Square type | 16.8 | 22.6 | 21.3 | 26.2 | 25.7 | 25.7 |
| Model Name | Lamp Power | Luminous Flux | Efficiency |
|---|---|---|---|
| HDV3 40K-24V | 2.9 W | 223 lm | 77 lm/W |
| HDV6 40K-24V | 5.8 W | 446 lm | 78 lm/W |
| HDV12 40K-24V | 11.6 W | 905 lm | 79 lm/W |
| HDV18 40K-24V | 17.2 W | 1,396 lm | 81 lm/W |
| HDV24 40K-24V | 23 W | 1,915 lm | 83 lm/W |
- - Power Input : DC24V
- - Color Rendering : Ra > 85
- - Available Color : 2,700K/3,000K/3,500K/4,000K/6,000K
- - Operating Temperature : 0~45℃
| Model Name | Power Input (V) | Lamp Power (W) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
|---|---|---|---|---|---|---|---|---|---|
| HDV3 40K-24V | DC 24 | 2.9 | 140 | 145 | 162 | 16 | 14 | 15 | 12.5 |
| HDV6 40K-24V | DC 24 | 5.8 | 280 | 285 | 302 | 16 | 14 | 15 | 12.5 |
| HDV12 40K-24V | DC 24 | 11.6 | 560 | 565 | 582 | 16 | 14 | 15 | 12.5 |
| HDV18 40K-24V | DC 24 | 17.2 | 840 | 845 | 862 | 16 | 14 | 15 | 12.5 |
| HDV24 40K-24V | DC 24 | 23 | 1,118 | 1,123 | 1,140 | 16 | 14 | 15 | 12.5 |

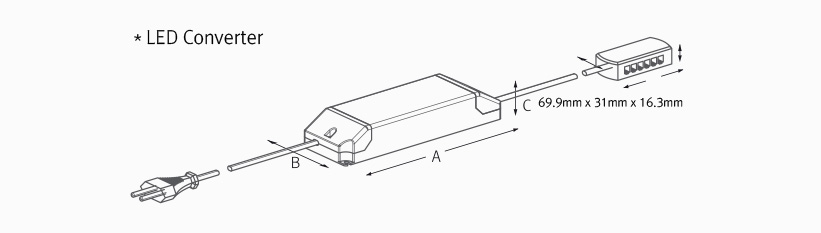

| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V/T | 180 | 60 | 32 |
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC200-24V/T | 228 | 68 | 39 |
 |
Connecting cables (Between FLX Stix HDV & FLX Stix HDV) |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Power cable : HDVPC | Power cable 2500mm (Between FLX Stix HDV & 6-way distributor) | ||||||||||
 |
Mounting bracket : HDV-BRACKET1 |
Included in fixture HDV-BRACKET1(A) : 1set = 2pcs HDV-BRACKET1(B) : 1set = 3pcs |
||||||||||
 |
Angle bracket (15˚ & 40˚) : HDV-BRACKET2 | HDV-BRACKET2(A) : 1set = 2pcs HDV-BRACKET2(B) : 1set = 3pcs |
||||||||||
 |
Sidefeed for seamless extension (3W) : HDV3 40K-24V-S | The dimension is the same as HDV3 40K-24V Powered only through cable, no power supply on the input connector |
||||||||||
 |
Connector : HDV2 40K-24V-FLEX |
FLX Stix HDV Flexible connector (2W) | ||||||||||
 |
End cap : HDV-CAP | Included in fixture | ||||||||||
 |
LED Driver with 12way distributor, with power cord (1800mm) |
|
||||||||||
 |
LED Driver : FLC200-24V/T (200W 24V) | LED Driver With 12way distributor Spec | ||||||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) Video Manual | ||||||||||
 |
Dimming Interface (0-10/1-10,DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (100W/CH, 5CH) Manual |
||||||||||
 |
Dimming Interface (Dail) : FDD-L1DA |
Max. 200W (100W/CH, 1CH) | ||||||||||
 |
Inline dimmer : HDVDIM | Max 75W in a row | ||||||||||
 |
Round diffuser |
|
||||||||||
 |

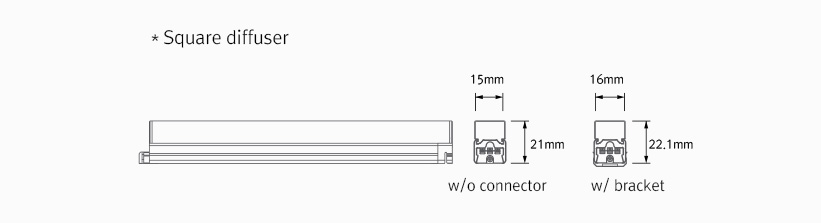

Square diffuser |
|
||||||||||
 |
Door and motion detection sensor : FLS-M24V | Voltage : DC 24V Video Manual | ||||||||||
 |
Human-body detection sensor : FLS-P24V | Voltage : DC 24V Video Manual |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
