FLX Stix HDPro
- - Super Slim linear LED with spot free high output

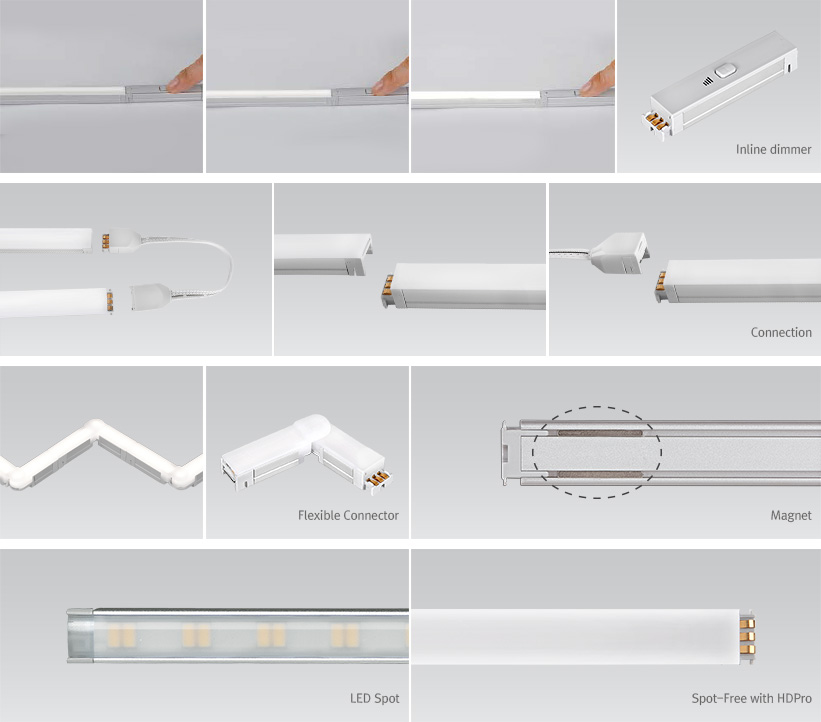

- - Quick connection system
- - Perfected with color consistency
- - No dark spot at the linkage point for continuous seamless effect
- - Various mounting methods including magnetic
- - Dimmable with available accessories
Various options
Max. connection 75W in one row(single power feed) / LED Driver
| Model Name | Max. units for LED Driver | |||
|---|---|---|---|---|
| 24V/30W | 24V/75W | 24V/200W | ||
| HDP3 40K-24V-C90 | 10 | 25 | 71 | |
| HDP6 40K-24V-C90 | 5 | 12 | 34 | |
| HDP12 40K-24V-C90 | 2 | 6 | 17 | |
| HDP18 40K-24V-C90 | 1 | 4 | 11 | |
| HDP24 40K-24V-C90 | 1 | 4 | 8 | |
- W/ Bracket
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | |
|---|---|---|---|---|---|---|
| Flat type | 16 | 14 | 18.3 | 18 | 21 | 19.6 |
| Model Name | Lamp Power | Luminous Flux | Efficiency |
|---|---|---|---|
| HDP3 40K-24V-C90 | 2.9 W | 205 lm | 82 lm/W |
| HDP6 40K-24V-C90 | 5.7 W | 408 lm | 72 lm/W |
| HDP12 40K-24V-C90 | 11.5 W | 832 lm | 72 lm/W |
| HDP18 40K-24V-C90 | 17.3 W | 1,259 lm | 73 lm/W |
| HDP24 40K-24V-C90 | 22.8 W | 1,677 lm | 73 lm/W |
- - Power Input : DC24V
- - Color Rendering : Ra > 90
- - Available Color : 2,200K/2,500K/2,700K/3,000K/3,500K/4,000K/ 5,000K/5,700
- - Operating Temperature : 0~45℃
| Model Name | Power Input (V) | Lamp Power (W) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
|---|---|---|---|---|---|---|---|---|---|
| HDP3 40K-24V-C90 | DC 24 | 2.9 | 140 | 145 | 163 | 16 | 13.8 | 15 | 12.6 |
| HDP6 40K-24V-C90 | DC 24 | 5.7 | 280 | 285 | 303 | 16 | 13.8 | 15 | 12.6 |
| HDP12 40K-24V-C90 | DC 24 | 11.5 | 559 | 564 | 582 | 16 | 13.8 | 15 | 12.6 |
| HDP18 40K-24V-C90 | DC 24 | 17.3 | 838 | 843 | 861 | 16 | 13.8 | 15 | 12.6 |
| HDP24 40K-24V-C90 | DC 24 | 22.8 | 1,117 | 1,122 | 1,141 | 16 | 13.8 | 15 | 12.6 |
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V-P/T | 180 | 60 | 32 |
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC200-24V/T | 228 | 68 | 39 |
 |
Connecting cables(between FLX Stix HDPro & FLX Stix HDPro) |
*Available Color : Black, Gray |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Power cable : HDPPC (2,500mm) | Power cable (Between FLX Stix HDP/DDP & 12-way distributor) *Available Color : Black, Gray |
||||||||||
 |
Mounting bracket : HDP-BRACKET 1 |
HDP-BRACKET1(A) : 1set = 2pcs HDP-BRACKET1(B) : 1set = 3pcs |
||||||||||
 |
Angle bracket (15˚ & 40˚) : HDP-BRACKET 2 | HDP-BRACKET2(A) : 1set = 2pcs HDP-BRACKET2(B) : 1set = 3pcs |
||||||||||
 |
Sidefeed for seamless extension (3W) : HDP3 40K-24V-S | |||||||||||
 |
Flexible Connector : HDP2 40K-24V-C90-FLEX | |||||||||||
 |
End cap : HDP-CAP | |||||||||||
 |
LED Driver with 12way distributor, with power cord (1800mm) |
|
||||||||||
 |
LED Driver : FLC200-24V/T (200W 24V) | LED Driver With 12way distributor Spec | ||||||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) Video Manual | ||||||||||
 |
Dimming Interface(0-10/1-10,DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) Manual |
||||||||||
 |
Dimming Interface (Dail) : FDD-L1DA |
Max. 200W (100W/CH, 1CH) | ||||||||||
 |
Occupancy Sensor : HDP-OSM | NDP Occupancy Sensor Inline Module | ||||||||||
 |
Inline dimmer : HDPDIM | Max 75W in a row | ||||||||||
 |
Door and motion detection sensor : FLS-M24V | Voltage : DC 24V Video Manual | ||||||||||
 |
Human-body detection sensor : FLS-P24V | Voltage : DC 24V Video Manual |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
