FLX Stix DDPro

FLX_Stix_DDPro
    적용사례
  • - Super Slim linear LED with spot free high output
  • - Quick connection system
  • - Perfected with color consistency
  • - No dark spot at the linkage point for continuous seamless effect
  • - Various mounting methods including magnetic
  • - Dimmable with available accessories
적용사례

Various options

Various options

Max. connection 75W in one row(single power feed) / LED Driver

Max. connection
Model Name Max. units for LED Driver
24V/30W 24V/75W 24V/200W
DDP3 SC-24V-C90 10 25 71
DDP6 SC-24V-C90 5 12 34
DDP12 SC-24V-C90 2 6 17
DDP18 SC-24V-C90 1 4 11
DDP24 SC-24V-C90 1 4 8
설치방법

- W/ Bracket

Fixture dimension
A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
Flat type 16 14 18.3 18 21 19.6
Max. connection
Model Name Lamp Power Luminous Flux Efficiency
DDP3 SC-24V-C90 2.9 W 182 lm 63 lm/W
DDP6 SC-24V-C90 5.7 W 366 lm 64 lm/W
DDP12 SC-24V-C90 11.5 W 753 lm 65 lm/W
DDP18 SC-24V-C90 17.5 W 1,150 lm 67 lm/W
DDP24 SC-24V-C90 22.8 W 1,505 lm 66 lm/W
  • - Power Input : DC24V
  • - Color Rendering : Ra > 90
  • - Available Color : 2,200K~4,000K
  • - Operating Temperature : 0~45℃
규격
Max. connection
Model Name Power Input (V) Lamp Power (W) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm)
DDP3 SC-24V-C90 DC 24 2.9 140 145 163 16 13.8 15 12.6
DDP6 SC-24V-C90 DC 24 5.7 280 285 303 16 13.8 15 12.6
DDP12 SC-24V-C90 DC 24 11.5 559 564 582 16 13.8 15 12.6
DDP18 SC-24V-C90 DC 24 17.5 838 843 861 16 13.8 15 12.6
DDP24 SC-24V-C90 DC 24 22.8 1,117 1,122 1,141 16 13.8 15 12.6
규격
Max. connection
Model Name A(mm) B(mm) C(mm)
FLC30-24V/T 150 41 31
FLC75-24V-P/T 180 60 32
규격
Max. connection
Model Name A(mm) B(mm) C(mm)
FLC200-24V/T 228 68 39
규격
Aceessories
연결선 Connecting cables
(between FLX Stix HDPro & FLX Stix HDPro)
Max. connection
HDPPTC HDPPTC1 HDPPTC2 HDPPTC4 HDPPTC6
150mm (6inch) 300mm (1feet) 600mm (2feet) 1200mm (4feet) 1800mm (6feet)

*Available Color : Black, Gray
전원선 Power cable :
HDPPC (2,500mm)		 Power cable (Between FLX Stix HDP/DDP & 12-way distributor)
*Available Color : Black, Gray
고정클립 Mounting bracket :
HDP-BRACKET 1		 HDP-BRACKET1(A) : 1set = 2pcs
HDP-BRACKET1(B) : 1set = 3pcs
각도클립 Angle bracket (15˚ & 40˚) : HDP-BRACKET 2 HDP-BRACKET2(A) : 1set = 2pcs
HDP-BRACKET2(B) : 1set = 3pcs
측면연결방식 Sidefeed for seamless extension (3W) : DDP3 WC-24V-C90-S
Flexible End cap : HDP-CAP
LED Converter LED Driver with 12way distributor, with power cord (1800mm)
Max. connection
Part No FLC30-24V/T Spec FLC75-24V-P/T Spec
Capacity 30W 24V 75W 24V
End-CAP LED Driver : FLC200-24V/T (200W 24V) LED Driver With 12way distributor Spec
Dimming Dimming Interface (0-10/1-10, DMX512) FDA-L2M0 : Max. 200W (100W/CH, 2CH)
FDA-L5M : Max. 200W (50W/CH, 5CH)
Manual
Dimming Interface (Dail) : FDD-L1DA Dimming Interface (Dail) :
FDD-L1DA		 Max. 200W (100W/CH, 1CH)
LED Converter Control Interface : FDD-L20 Max. 200W (100W/CH, 1CH) Video Manual

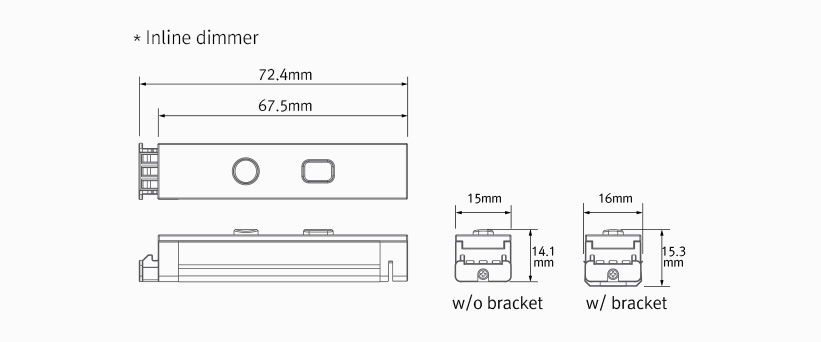

Inline Inline dimmer : DDPDIM Max 75W in a row
동작감지센서 Door and motion detection sensor : FLS-M24V Voltage : DC 24V Video Manual
인체감지센서 Human-body detection sensor : FLS-P24V Voltage : DC 24V Video Manual
FDD-L20 (0-10V/1-10V to PWM translator)

FDD-L20 (0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual

FDA-L2MO (DMX512/0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDA-L5M (DMX512 to PWM translator) Video Manual

FDA-L5M (DMX512 to PWM translator)

• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL

FSM-Z1 (ZIGBEE Switch)

• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE

FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL

FDD-L2Z (ZIGBEE Interface)

• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)

Looking for additional information about us and our products?
Below links are available for you to download/view additional brochure and technical Photometric information. You may need to download required programs to execute following extension files

 FLX Stix DDPro  Specification Sheets  IES data
