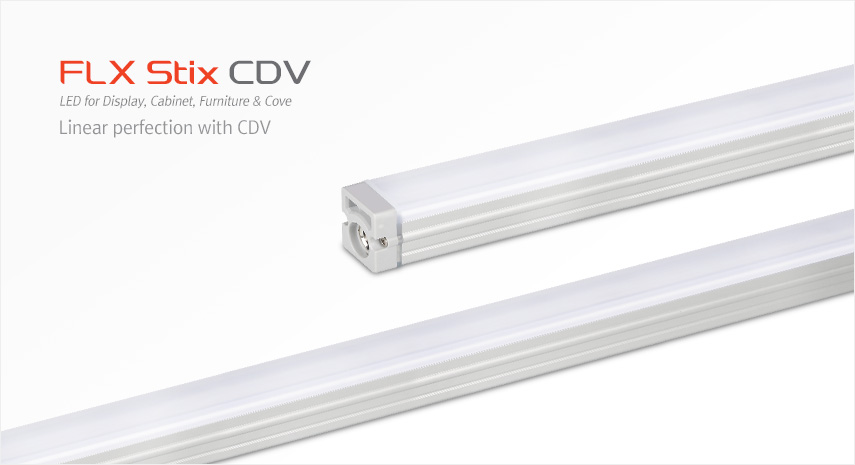

FLX Stix CDV
![FLX_Stix_CDV](img/FLX_DC/FLX_Stix_CDV/main.jpg)
- - Super slim Freezer and Cooler lighting
- - High Efficiency(115lm/w)
- - High Efficiency / High Output
- - IP65 Rating
- - Operating Temperature : -30℃ ~ 35℃
- - Comply with EN 60335-2-89

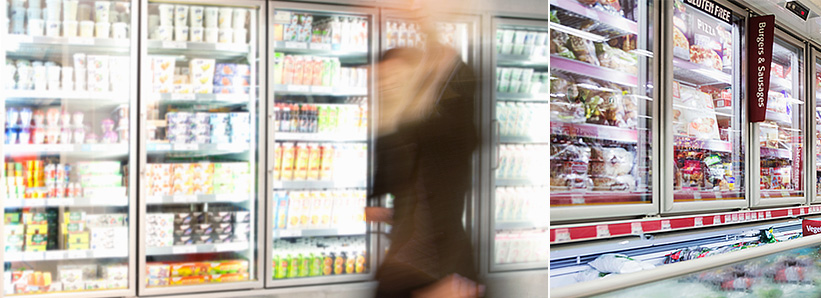

![적용사례](img/FLX_DC/FLX_Stix_CDV/apply.jpg)
Various Application
- CDV`s Asymmrtic Light Distribution provides Improved visibility and presentation of the food on display
![Various options](img/FLX_DC/FLX_Stix_CDV/info_00.jpg)

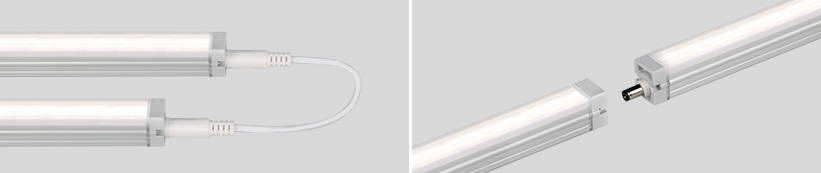

Various options
![Various options](img/FLX_DC/FLX_Stix_CDV/info_01.jpg)
![설치방법](img/FLX_DC/FLX_Stix_NDPro/ins_210906.jpg)
W/ Bracket
A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | |
---|---|---|---|---|---|---|
Flat type | 12 | 11 | 13.1 | 14.3 | 16 | 14.6 |
- - Voltage: DC 24V
- - Operating Temperature: -30℃ ~ 35℃
- - Lamp Life: 50,000hrs L70
- - Available Color: 3000K, 4000K, MEAT RED
- - Color Rendering: Ra>90
- - Energy Efficiency: 115lm/W
- - Degree of Protection: IP65

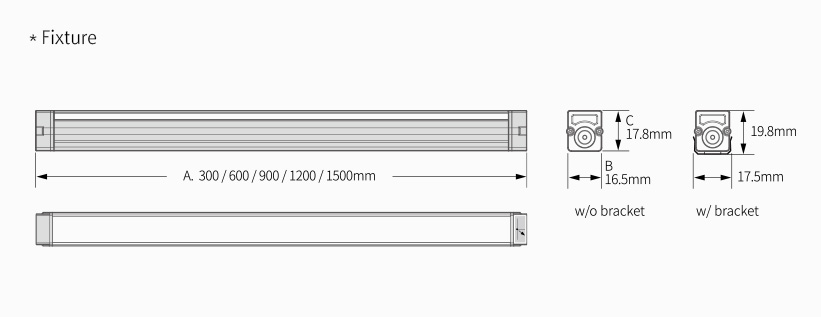

![규격](img/FLX_DC/FLX_Stix_CDV/standard.jpg)
Model Name | Voltage Input (V) |
Power Input (W) |
Luminous Flux (lm) /4000K |
Color Rendering |
Efficiency (lm/W) |
A(mm) | B(mm) | C(mm) |
---|---|---|---|---|---|---|---|---|
CDV4-40K-24V | DC24 | 4 | 460 | >90 | >115 | 300 | 16.5 | 17.8 |
CDV8-40K-24V | 8.3 | 955 | 600 | |||||
CDV12-40K-24V | 12.3 | 1,415 | 900 | |||||
CDV16-40K-24V | 16.5 | 1,898 | 1200 | |||||
CDV20-40K-24V | 20.6 | 2,369 | 1500 |
![]() |
FLX Stix CDV |
|
||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
Connecting Cable | CDVPTC 150mm CDVPTC 300mm CDVPTC 600mm |
||||||||||
![]() |
Direct connector | CDVCPL | ||||||||||
![]() |
Power Cable | CDVPC 1,800mm | ||||||||||
![]() |
Mounting Bracket (End cap included) | CDV-BRACKET Included in fixture |
||||||||||
![]() |
Mounting Bracket Magnet(Optional) | CDV-BRACKET Included in fixture |
||||||||||
![]() |
LED Driver | FLC200-24V/T (200W) IP 67 rating |
FDD-L1DA More Details
DALI
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
![제품결선도](img/Dimming_System/Other_system_Interface_DC/dia_01_190902.jpg)
FDC-L10 More Details
0-10V/1-10V
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
![제품결선도](img/Dimming_System/Other_system_Interface_DC/dia_02_190902.jpg)
FDD-L20 More Details
0-10V/1-10V
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
![제품결선도](img/Dimming_System/Other_system_Interface_DC/dia_07.jpg)
FDA-L2MO More Details
0-10V/1-10V / DMX512
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
![제품결선도](img/Dimming_System/Other_system_Interface_DC/dia_03_190902.jpg)
FDA-L5M More Details
DMX512
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
![제품결선도](img/Dimming_System/Other_system_Interface_DC/dia_04_190902.jpg)
FSM-Z1 More Details
ZIGBEE
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z More Details
ZIGBEE
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
