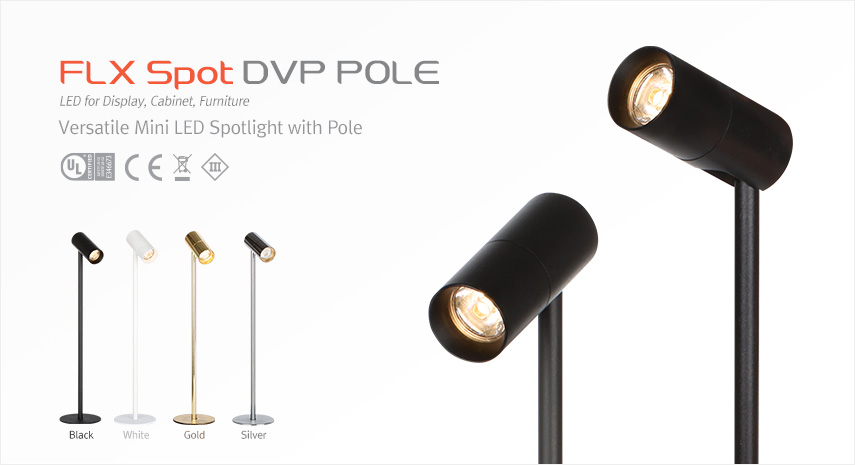

FLX Spot DVP POLE
![FLX_Spot_DVP_POLE](img/FLX_DC/FLX_Spot_DVP_POLE/main.jpg)
- - With constant voltage DC 24V driver
- - Mini pole spotlight with various beam angle
- - Effective focusing ability for showcases
- - Dimmable with available accessories
- - Available in black, white (Special order option: gold, silver)

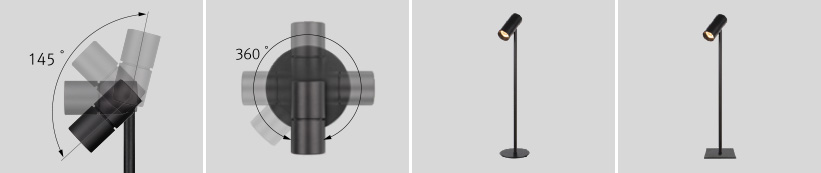

Various options
![Various options](img/FLX_DC/FLX_Spot_DVP_POLE/info_01.jpg)

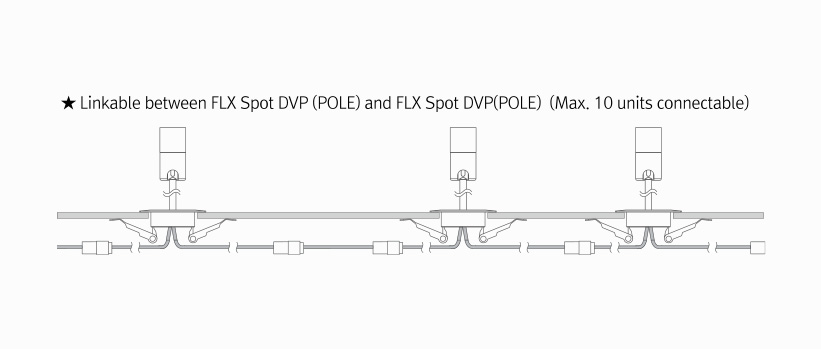

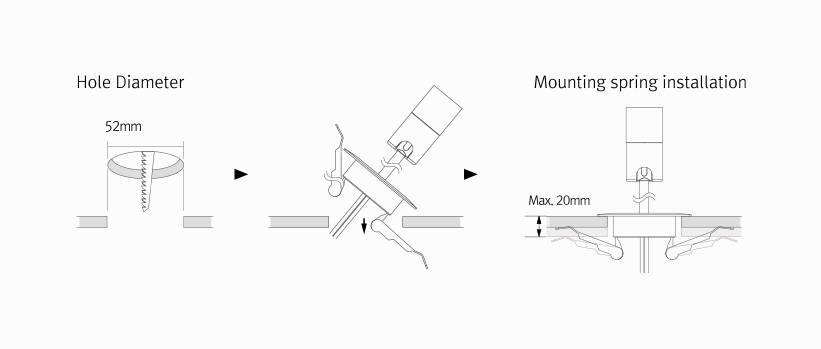

![설치방법](img/FLX_DC/FLX_Spot_DVP_POLE/ins.jpg)
![설치방법](img/FLX_DC/FLX_Spot_DVP_POLE/ins_01.jpg)
Model Name | Lamp Power | Luminous Flux | Efficacy |
---|---|---|---|
DVP3 40K-24V-POLE-BK-28-RP | 2.6 W | 279.2 lm | 105.8 lm/W |
- - Power Input : DC 24V
- - Color Rendering : CRI > 90
- - Available Color : 2,700K/3,000K/3,500K/4,000K
- - Beam Angle : 28°, 40°, 50°
- - Plate : Round, Square
- - Operating Temperature : 0 ~ 45℃

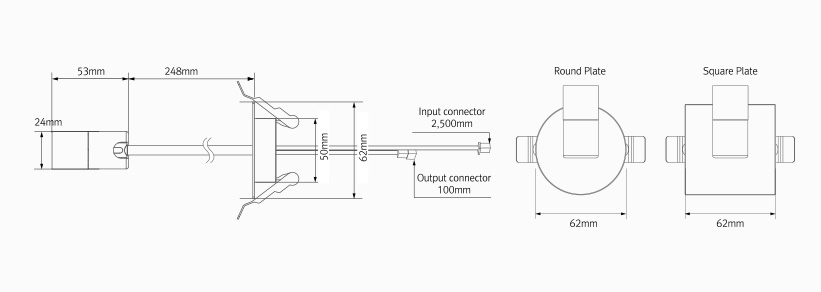

![규격](img/FLX_DC/FLX_Spot_DVP_POLE/standard.jpg)
![]() |
FLX Spot DVP POLE (Round Plate) |
DVP3 40K-24V-POLE-BK-28-RP DVP3 40K-24V-POLE-BK-40-RP DVP3 40K-24V-POLE-BK-50-RP |
||||||
---|---|---|---|---|---|---|---|---|
![]() |
FLX Spot DVP POLE (Square Plate) |
DVP3 40K-24V-POLE-BK-28-SP DVP3 40K-24V-POLE-BK-40-SP DVP3 40K-24V-POLE-BK-50-SP |
||||||
![]() |
DVP HOOD | DVP3-HOOD-BK-28 (28°) DVP3-HOOD-BK-40 (40°) DVP3-HOOD-BK-50 (50°) * Hood with lens for various beam angle replacement |
||||||
![]() |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
![]() |
LED Driver : FLC200-24V/T (200W DC24V) |
LED Driver With 12way distributor Spec | ||||||
![]() |
Dimming Interface (1-10V) : FDC-L10 |
Max. 100W (100W/CH, 1CH) | ||||||
![]() |
Dimming Interface (0-10/1-10,DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) |
||||||
![]() |
Dimming Interface (Dail) : FDD-L1DA |
Max. 200W (100W/CH, 1CH) | ||||||
![]() |
Door and motion detection sensor (DC) : FLS-M24V | Voltage : DC 24V Video Manual | ||||||
![]() |
Human-body detection sensor (DC) : FLS-P24V | Voltage : DC 24V Video Manual | ||||||
![]() |
Dimming Interface (Zigbee) | FDD-L2Z : Max. 200W (100W/CH, 2CH) | ||||||
![]() |
Switch (Zigbee) | FSM-Z1 : Wireless Control |
