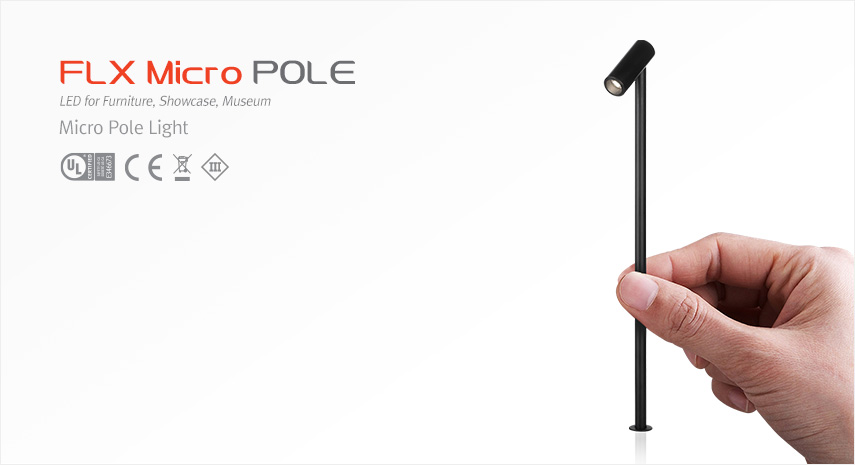

FLX Micro POLE

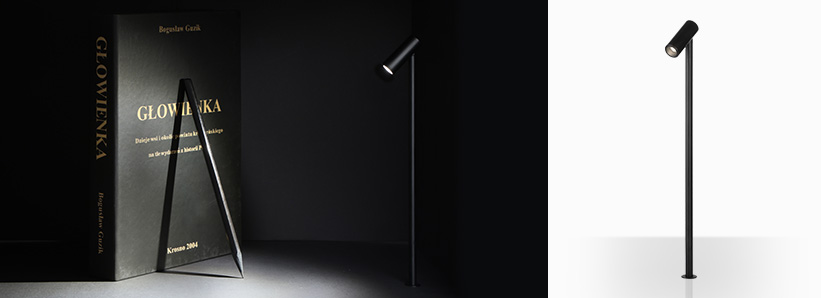

- - Miniature lighting for furniture, showcase, museum
- - Super slim design
- - Adjustable pole length, Rotatable head
- - Constant voltage DC 24V driver
- - Available in black (Special order option: gold, silver)
- - Various beam angles (18°, 32°, 46°)
- - Dimmable
| Model Name | Lamp Power | Luminous Flux | Lumen/W | Beam Angle |
|---|---|---|---|---|
| MCR-PL1 30K-24V-18-BK | 1.2W | 60 lm | 49 lm/W | 18° |
| MCR-PL1 30K-24V-32-BK | 1.2W | 91 lm | 75 lm/W | 32° |
| MCR-PL1 30K-24V-46-BK | 1.2W | 79 lm | 65 lm/W | 46° |
- - Power Input : DC 24V
- - Color Rendering : CRI > 90
- - Color Temperature : 2700K, 3000K, 3500K, 4000K
- - Beam Angle : 18°, 32°, 46°
- - Operating Temperature : 0 ~ 45°C
 |
FLX Micro POLE | MCR-PL1 30K-24V-18-BK MCR-PL1 30K-24V-32-BK MCR-PL1 30K-24V-46-BK |
||||||
|---|---|---|---|---|---|---|---|---|
 |
12Port Hub | D12P-HUB Included with Cord and Plug drivers. Order separately for Hard Wire or 3rd Party Drivers |
||||||
 |
Door and motion detection sensor (DC) : FLS-M24V | Voltage : DC 24V | ||||||
 |
Human-body detection sensor (DC) : FLS-P24V | Voltage : DC 24V | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
Dimming Interface (1-10V) : FDC-L10 |
Max. 100W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (0-10/1-10,DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) |
||||||
 |
Dimming Interface (Dail) : FDD-L1DA |
Max. 200W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (Zigbee) | FDD-L2Z : Max. 200W (100W/CH, 2CH) | ||||||
 |
Switch (Zigbee) | FSM-Z1 : Wireless Control |
