FLT Track System-Spot

FLT_Track_System_Spot

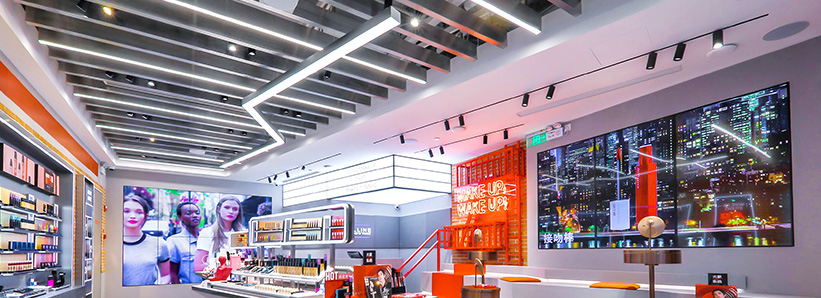

    적용사례
  • - Magnetic system for easy installation and adjustment
  • - Safe Low Voltage 24V DC
  • - Surface, Recessed and Pendant mount track available
  • - Black and White Finishes
  • - Various light fixtures and beam angle
적용사례 적용사례
설치방법
Max. connection
Model Name Lamp Power Luminous Flux (3000K) Efficiency
FLT-SS06 30K-24V 6.3 W 438.1 lm 69.7 lm/W
FLT-SS09 35K-24V 8.9 W 783 lm 88.5 lm/W
FLT-SS15 30K-24V 14.75 W 1,068.8 lm 72.41 lm/W
FLT-SS20 30K-24V 19 W 1,368 lm 74.9 lm/W
FLT-SL06 30K-24V 6.3 W 435 lm 68.9 lm/W
FLT-SM02 30K-24V 1.7 W 98 lm 58.6 lm/W
FLT-SM12 30K-24V 12 W 1025 lm 85.4 lm/W
  • - Power Input : DC 24V
  • - Color Rendering : Ra > 90
  • - Available Color : 2,700K/3,000K/3,500K/4,000K
  • - Operating Temperature : 0 ~ 45℃
규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SS06 30K-24V 46 167 16 102 16 18
Max. connection
Beam angle Black White
15° FLT-SS06 30K-24V-BK-15 FLT-SS06 30K-24V-WT-15
24° FLT-SS06 30K-24V-BK-24 FLT-SS06 30K-24V-WT-24
36° FLT-SS06 30K-24V-BK-36 FLT-SS06 30K-24V-WT-36
규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SS09 35K-24V 46 167 33 102 16 18
Max. connection
Beam angle Black White
15° FLT-SS09 30K-24V-BK-15 FLT-SS09 30K-24V-WT-15
24° FLT-SS09 30K-24V-BK-24 FLT-SS09 30K-24V-WT-24
36° FLT-SS09 30K-24V-BK-36 FLT-SS09 30K-24V-WT-36
규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SS15 40K-24V 46 167 33 130 16 18
Max. connection
Beam angle Black White
15° FLT-SS15 30K-24V-BK-15 FLT-SS15 30K-24V-WT-15
24° FLT-SS15 30K-24V-BK-24 FLT-SS15 30K-24V-WT-24
36° FLT-SS15 30K-24V-BK-36 FLT-SS15 30K-24V-WT-36
규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SS20 30K-24V 62.5 167 120 154 16 18
Max. connection
Beam angle Black White
15° FLT-SS20 30K-24V-BK-15 FLT-SS20 30K-24V-WT-15
24° FLT-SS20 30K-24V-BK-24 FLT-SS20 30K-24V-WT-24
36° FLT-SS20 30K-24V-BK-36 FLT-SS20 30K-24V-WT-36
규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SL06 30K-24V 46 167 200 226 16 18
Max. connection
Beam angle Black White
15° FLT-SL06 30K-24V-BK-15 FLT-SL06 30K-24V-WT-15
24° FLT-SL06 30K-24V-BK-24 FLT-SL06 30K-24V-WT-24
36° FLT-SL06 30K-24V-BK-36 FLT-SL06 30K-24V-WT-36
규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SM02 30K-24V 34 98 56.5 85 16 16
Max. connection
Beam angle Black White
15° FLT-SM02 30K-24V-BK-15 FLT-SM02 30K-24V-WT-15
24° FLT-SM02 30K-24V-BK-24 FLT-SM02 30K-24V-WT-24
36° FLT-SM02 30K-24V-BK-36 FLT-SM02 30K-24V-WT-36
규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SM12 40K-24V 50 167 86 120 16 18
Max. connection
Beam angle Black White
15° FLT-SM12 30K-24V-BK-15 FLT-SM12 30K-24V-WT-15
24° FLT-SM12 30K-24V-BK-24 FLT-SM12 30K-24V-WT-24
36° FLT-SM12 30K-24V-BK-36 FLT-SM12 30K-24V-WT-36
Aceessories
Power Connector for FLT Power Connector for FLT FLTOPC
Direct Connector for FLT Track Direct Connector for FLT Track FLTCPL
Suspension Power Kit for TRS2 Suspension Power Kit for TRS1 FLT-SK-POWER 1
Suspension Bracket for TRS2 Suspension Bracket for TRS1 FLT-SK-BRACKET 1
Suspension Power Kit for TRS2 Suspension Power Kit for TRS2 FLT-SK-POWER 2
Suspension Bracket for TRS2 Suspension Bracket for TRS2 FLT-SK-BRACKET 2
Holder for TRT1 Track Holder to hold the track when installing Holder for TRT1 Track
Holder to hold the track when installing		 FLT-TRT1-HOLDER
Holder for TRT2 Track Holder to hold the track when installing Holder for TRT2 Track
Holder to hold the track when installing		 FLT-TRT2-HOLDER
FLT-TRS1-JOINT Joint Bracket for TRS1
Between track to track bracket		 FLT-TRS1-JOINT
FLT-TRS2-JOINT Joint Bracket for TRS2
Between track to track bracket		 FLT-TRS2-JOINT
FLT-TRT-JOINT Joint Bracket for TRT1,2
Between track to track bracket		 FLT-TRT-JOINT
TRT WING for Trimless Track TRT WING for Trimless Track FLT-TRT-WING
Fixture Remover Fixture Remover FLT-Remover
LED Driver with 12way distributor, with power cord (1,800mm) LED Driver with 12way distributor, with power cord (1,800mm)
Max. connection
Part No FLC30-24V/T Spec FLC75-24V-P/T Spec
Capacity 30W 24V 75W 24V
LED Driver : FLC200-24V/T (200W DC24V) LED Driver : FLC200-24V/T (200W DC24V) LED Driver With 12way distributor Spec
Dimming Interface (1-10V) : FDC-L10 Dimming Interface (1-10V) : FDC-L10 Max. 100W (100W/CH, 1CH)
Dimming Interface (0-10/1-10, DMX512) Dimming Interface (0-10/1-10, DMX512) FDA-L2M0 : Max. 200W (100W/CH, 2CH)
FDA-L5M : Max. 200W (50W/CH, 5CH)
Dimming Interface (Dali) : FDD-L1DA Dimming Interface (Dali) : FDD-L1DA Max. 200W (100W/CH, 1CH)
FDD-L1DA (DALI to PWM translator)

FDD-L1DA (DALI to PWM translator)

• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual

FDC-L10 (0-10V/1-10V to PWM translator)

• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V

• Wiring

제품결선도

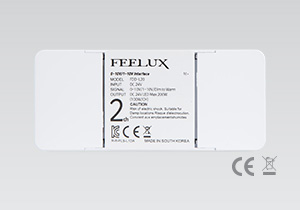

FDD-L20 (0-10V/1-10V to PWM translator)

FDD-L20 (0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual

FDA-L2MO (DMX512/0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDA-L5M (DMX512 to PWM translator) Video Manual

FDA-L5M (DMX512 to PWM translator)

• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL

FSM-Z1 (ZIGBEE Switch)

• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE

FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL

FDD-L2Z (ZIGBEE Interface)

• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
